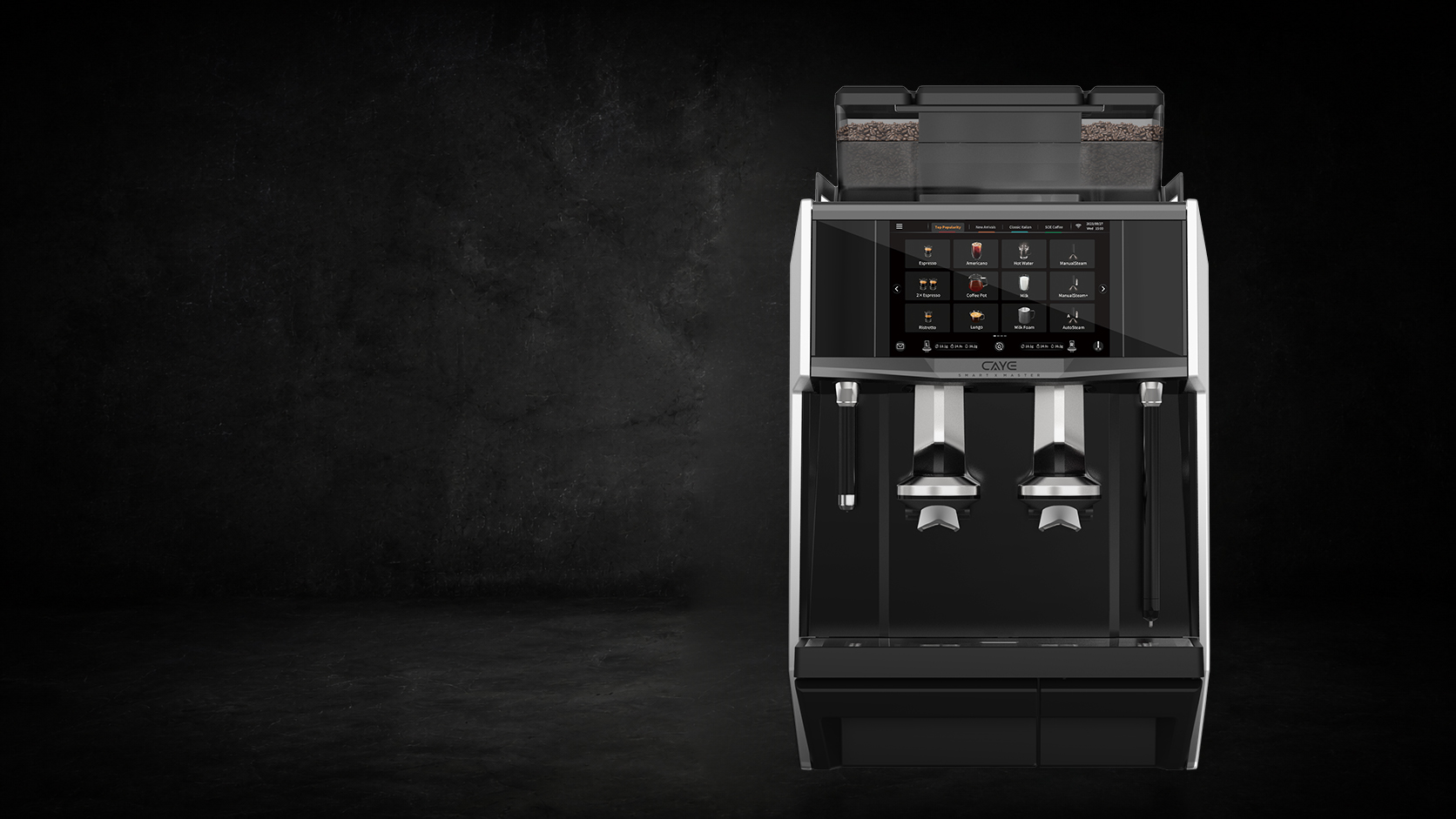

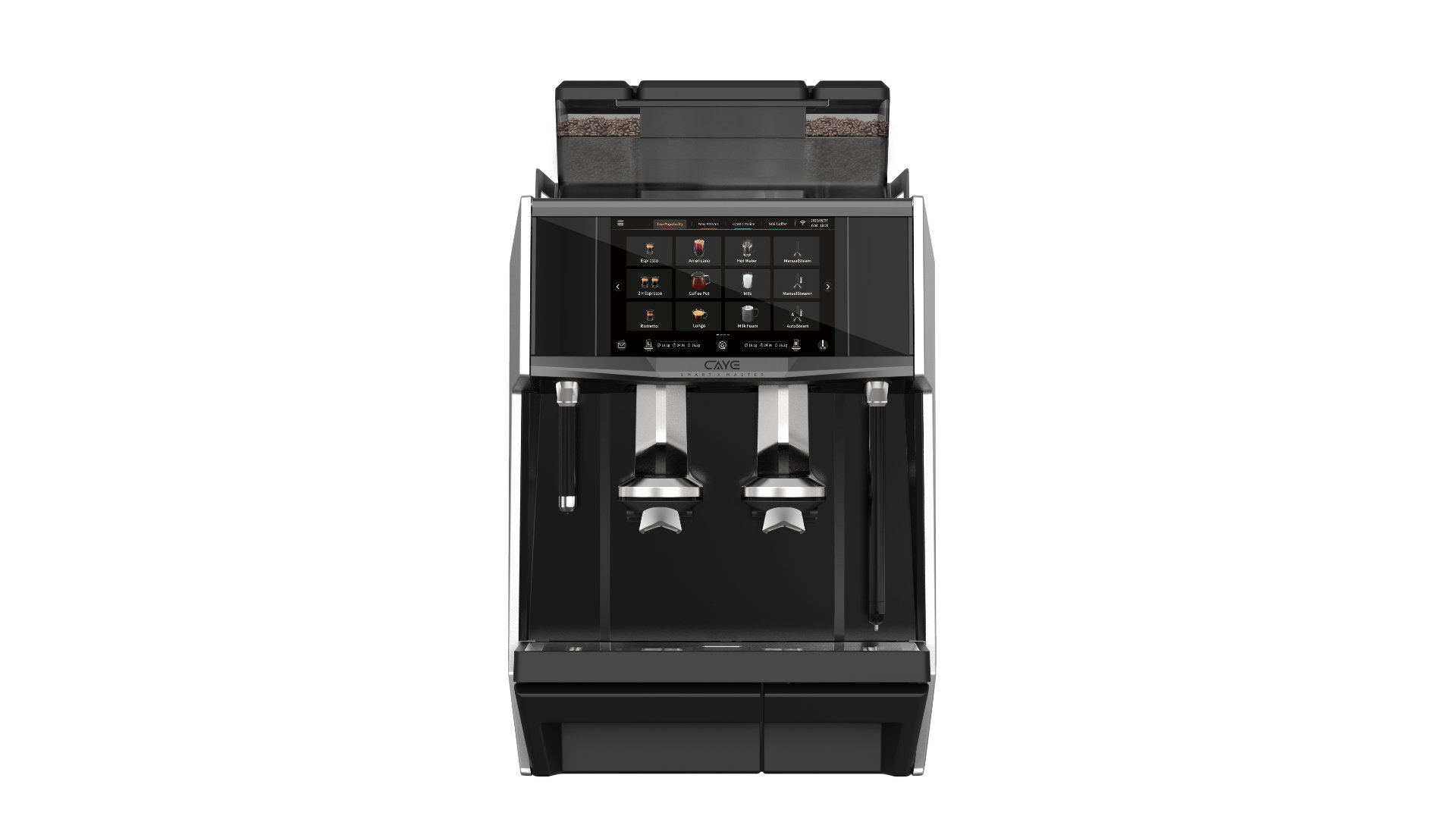

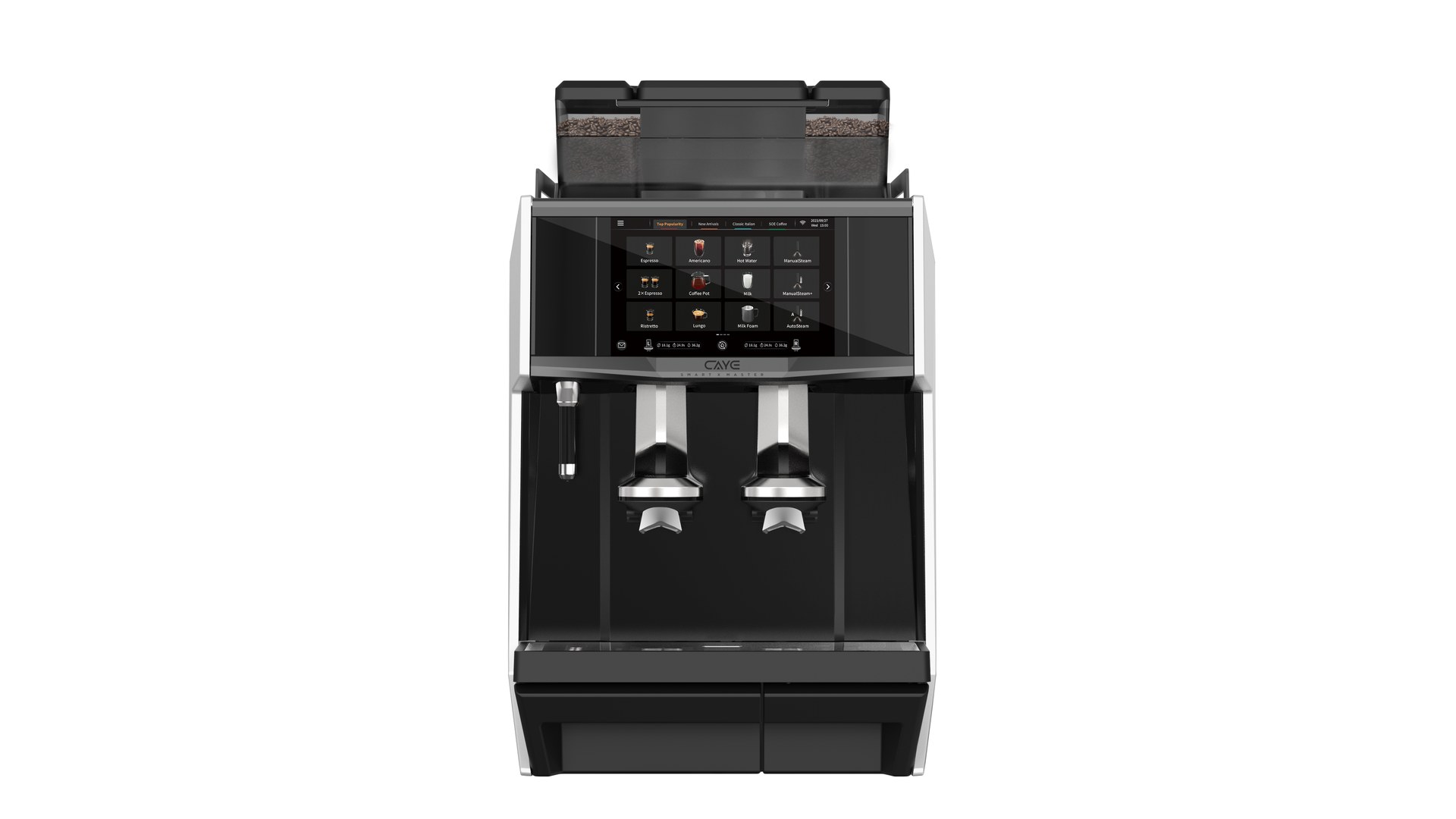

Smart X Master brings the precision of professional coffee-making into an intelligent automated system, precisely controlling every critical step from grinding to extraction for consistent quality.
Built for peak hours and high-volume operations, Smart X Master features dual brewing systems and dual outlets to maximize continuous output and keep service moving under extreme workloads. Its integrated die-cast frame and fully modular architecture provide the stability and reliability required for demanding commercial environments.
Precision dosing for pure, consistent flavor expression.
Learn more
Even distribution for smooth, consistent extraction every time.
Learn more
The third-generation fully automatic coffee machine

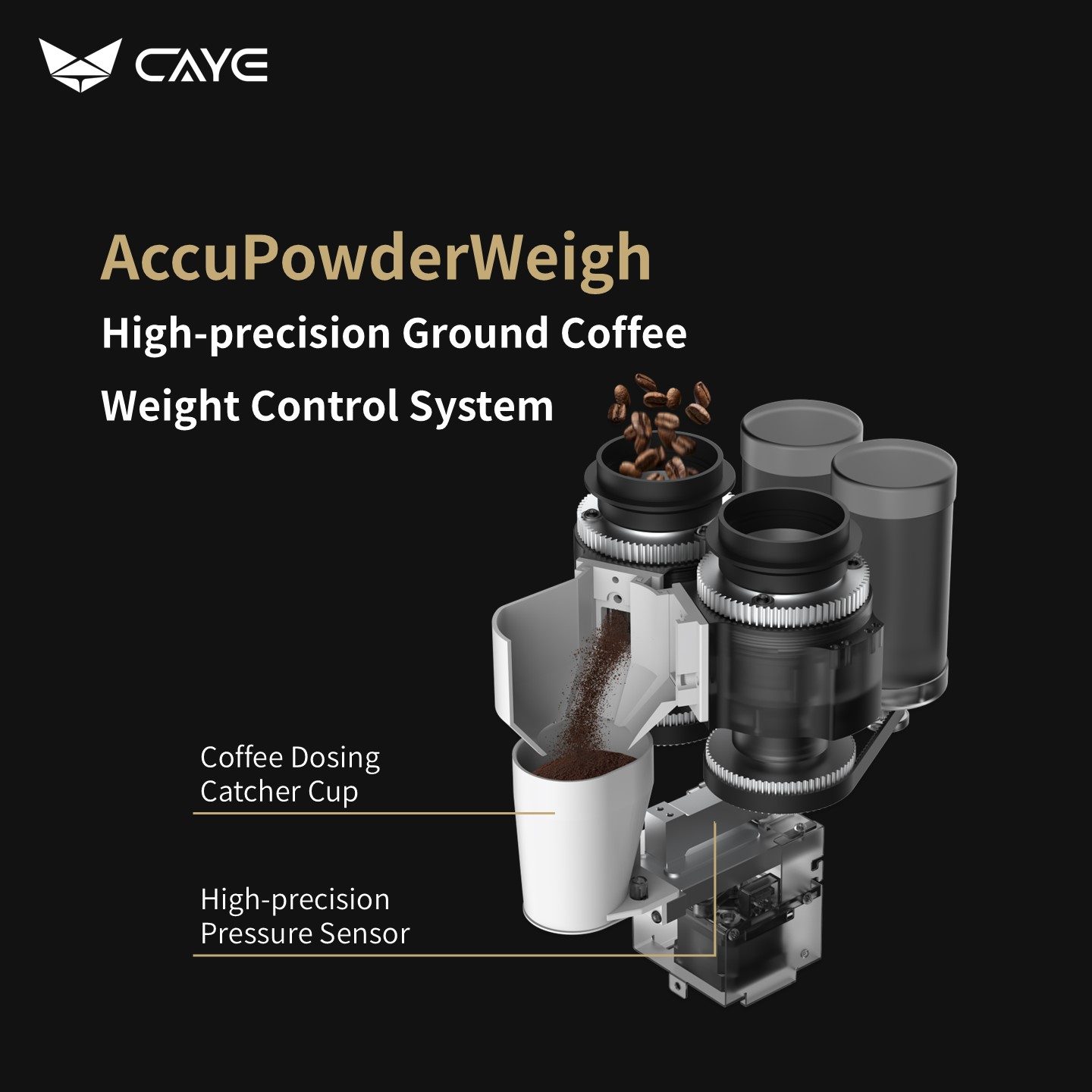

Featuring the innovative AccuPowderWeigh high-precision ground coffee weight control system, the Smart X series bean-to-cup coffee machine utilises advanced scale module and smart algorithms to maintain coffee powder weight within ±0.2g, ensuring consistent, top-quality results every time. Just like the most experienced barista do.

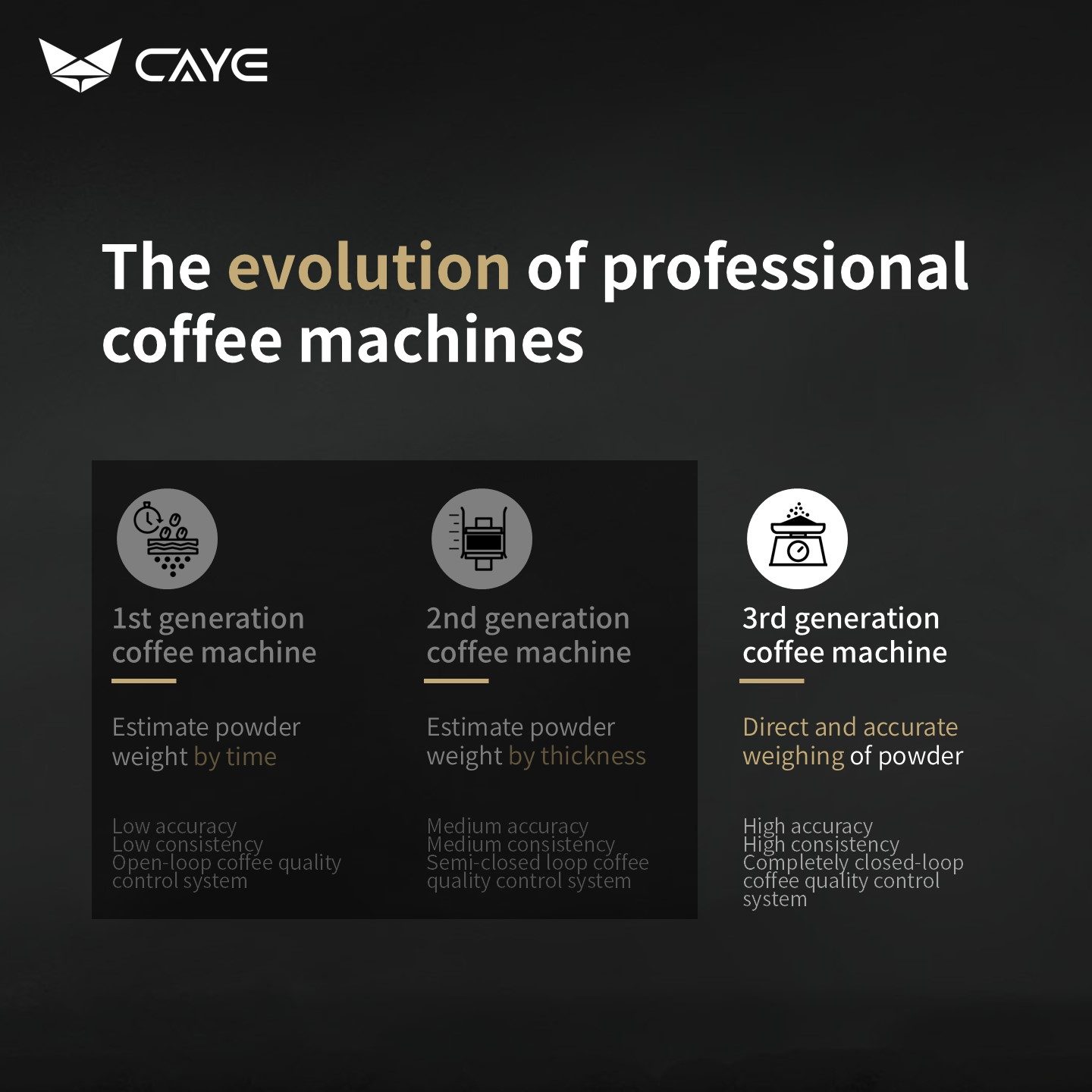

From the perspective of ground coffee weight control, first-generation fully automatic coffee machines estimated powder weight based on grinding time, while the improved second generation relied on tamping to measure thickness. With the arrival of the Smart X, the era of third-generation commercial fully automatic coffee machines has officially begun.

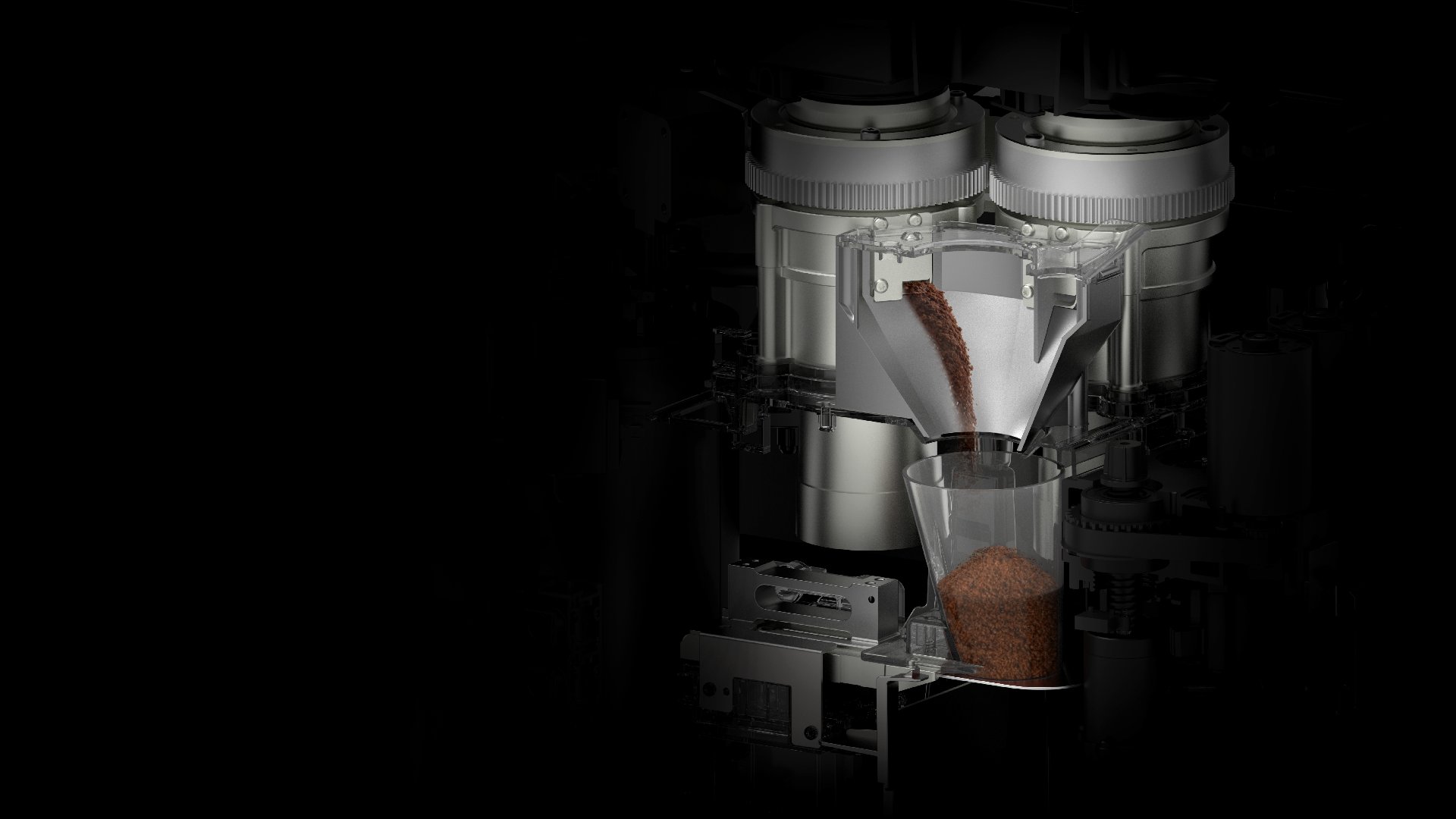

Instead of coffee grounds dropping directly into the brewing chamber, they first enter a dedicated catcher cup - an integrated coffee scale. Equipped with a high-precision pressure sensor and proprietary intelligent algorithms, this system directly measures and controls the powder weight with exceptional accuracy.
High precision for excellent in-cup quality

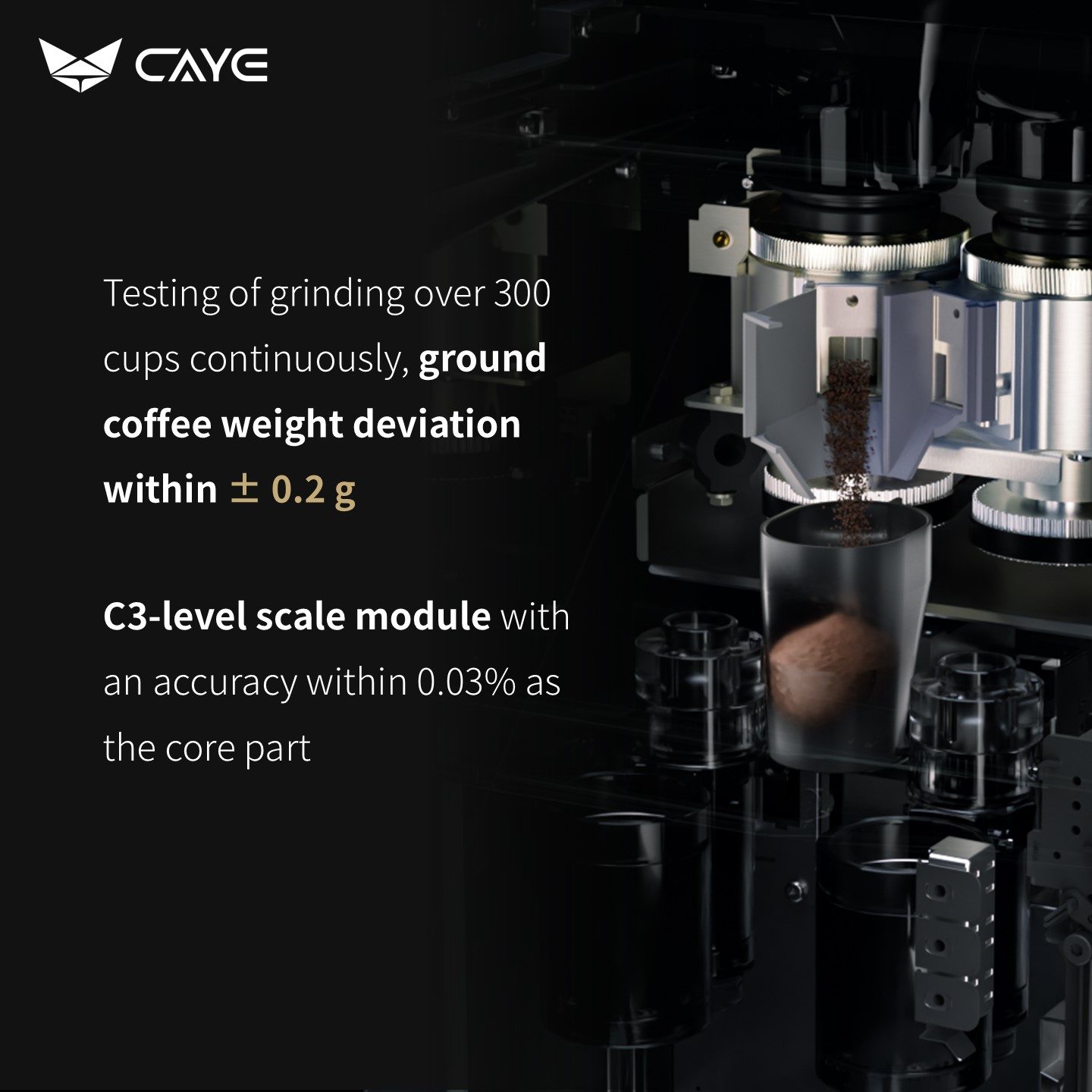

The weighing module features a built-in C3-grade (0.03%) high-precision sensor, which continuously monitors weight data during the grinding process. This advanced sensor accurately detects even the slightest variations in coffee powder weight, providing precise data support to the system for unparalleled consistency and control.

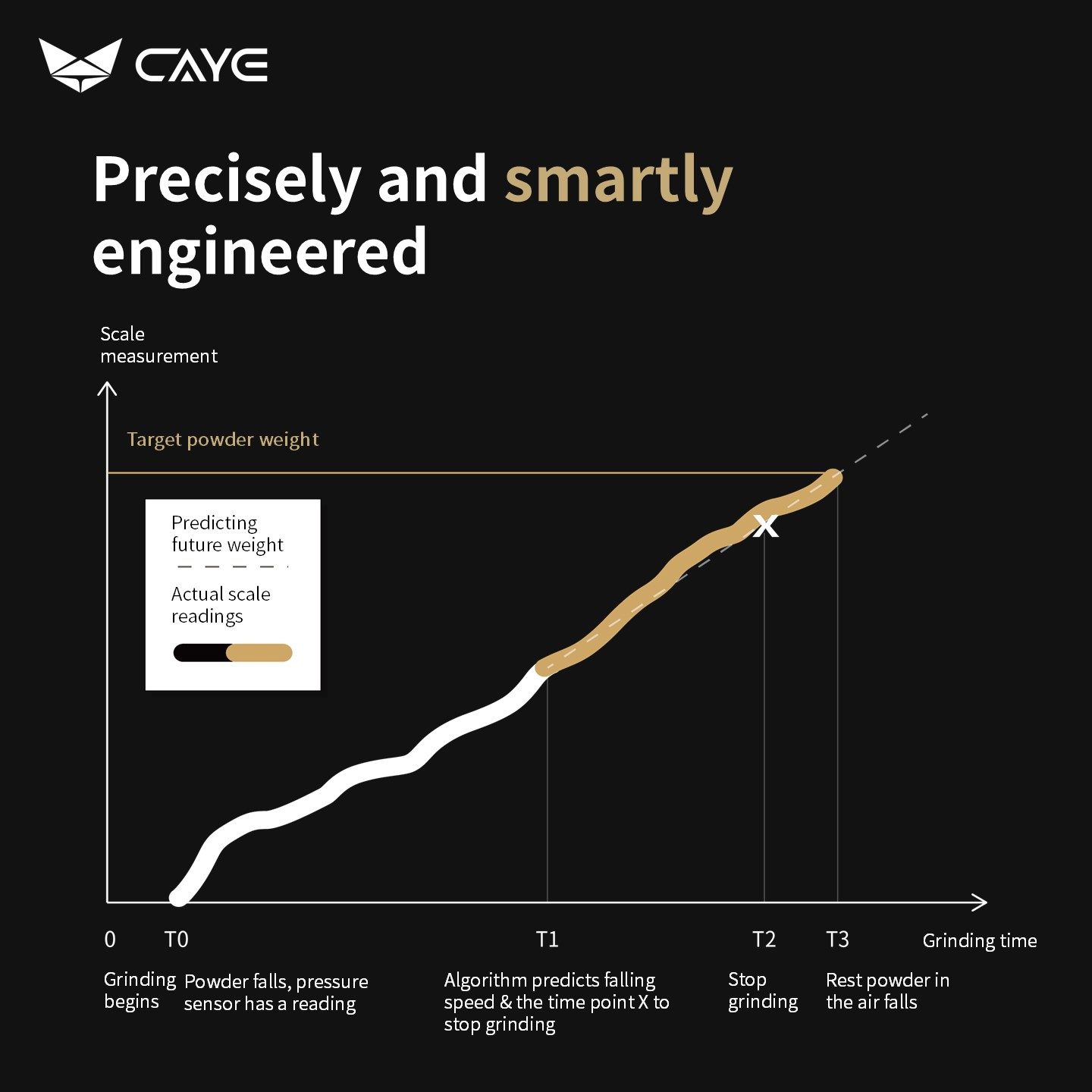

By integrating predictive algorithms with software, the system uses real-time sensor data and historical grinding data to precisely predict and control the grinder's stop time, with a delay of less than 20ms. This innovation enables the CAYE Smart X series to not only achieve accurate coffee powder weighing but also ensure quick grinding stops.
Redefining coffee making with precision and efficiency
The benefits are clear: Streamline recipe development by locking in precise weights. Reduce waste and cut costs over time.
It simplifies recipe development by locking in preset weights, so baristas can focus on flavor instead of frequent adjustments.
For chain coffee shops, AccuPowderWeigh guarantees consistency across locations, ensuring uniform flavor and boosting brand reputation. Plus, it reduces coffee waste, saving costs in the long run.
In the competitive world of coffee, ensuring the highest level of consistency in every cup is essential for both customer satisfaction and brand loyalty. That’s where the best espresso machines come into play. CAYE Smart X’s Closed-Loop System (CLS) offers the next generation of coffee extraction quality control, setting new standards in espresso making. By monitoring extraction parameters and automating real-time adjustments, this system ensures a consistent and superior cup, no matter the setting.

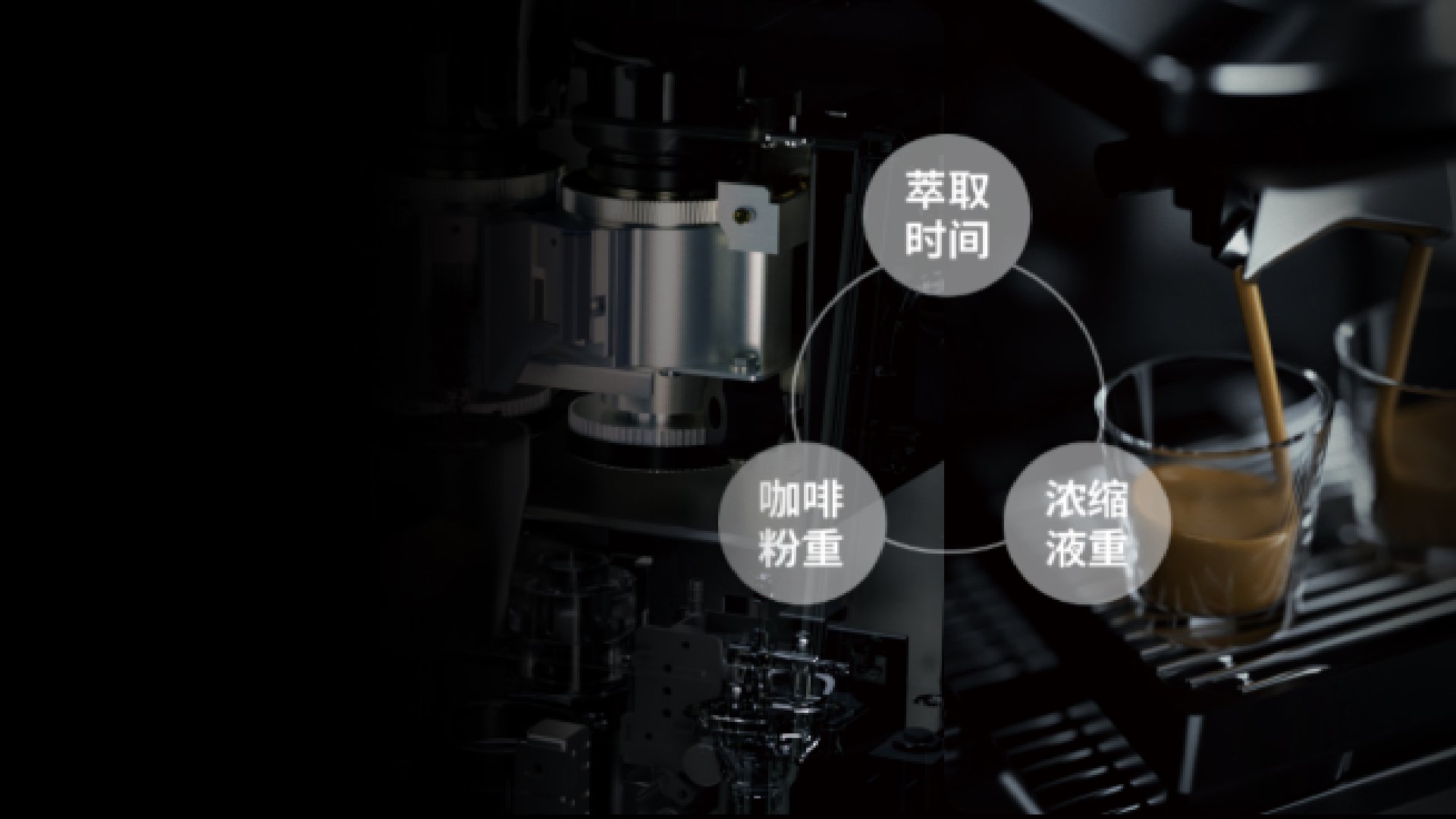

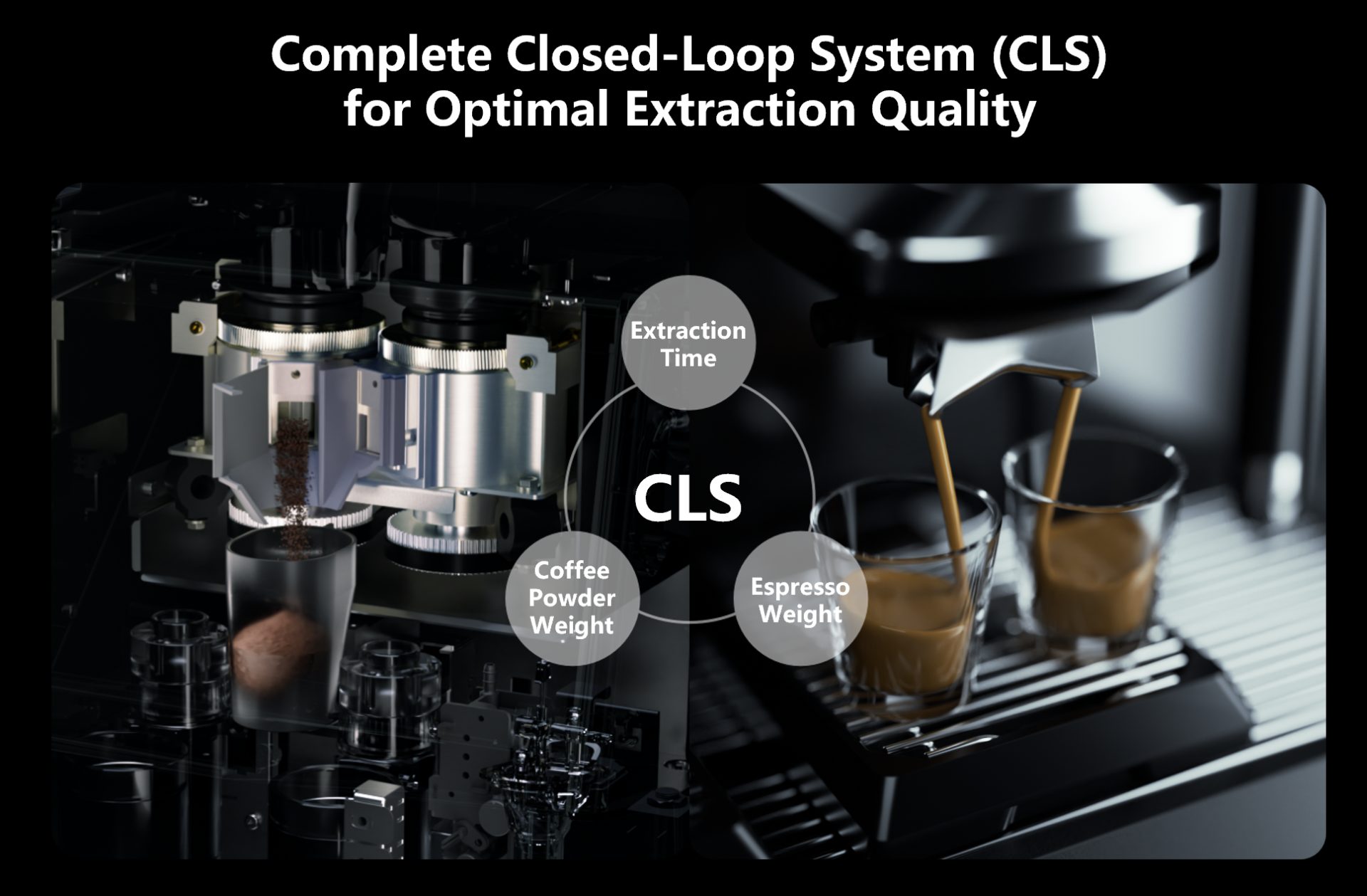

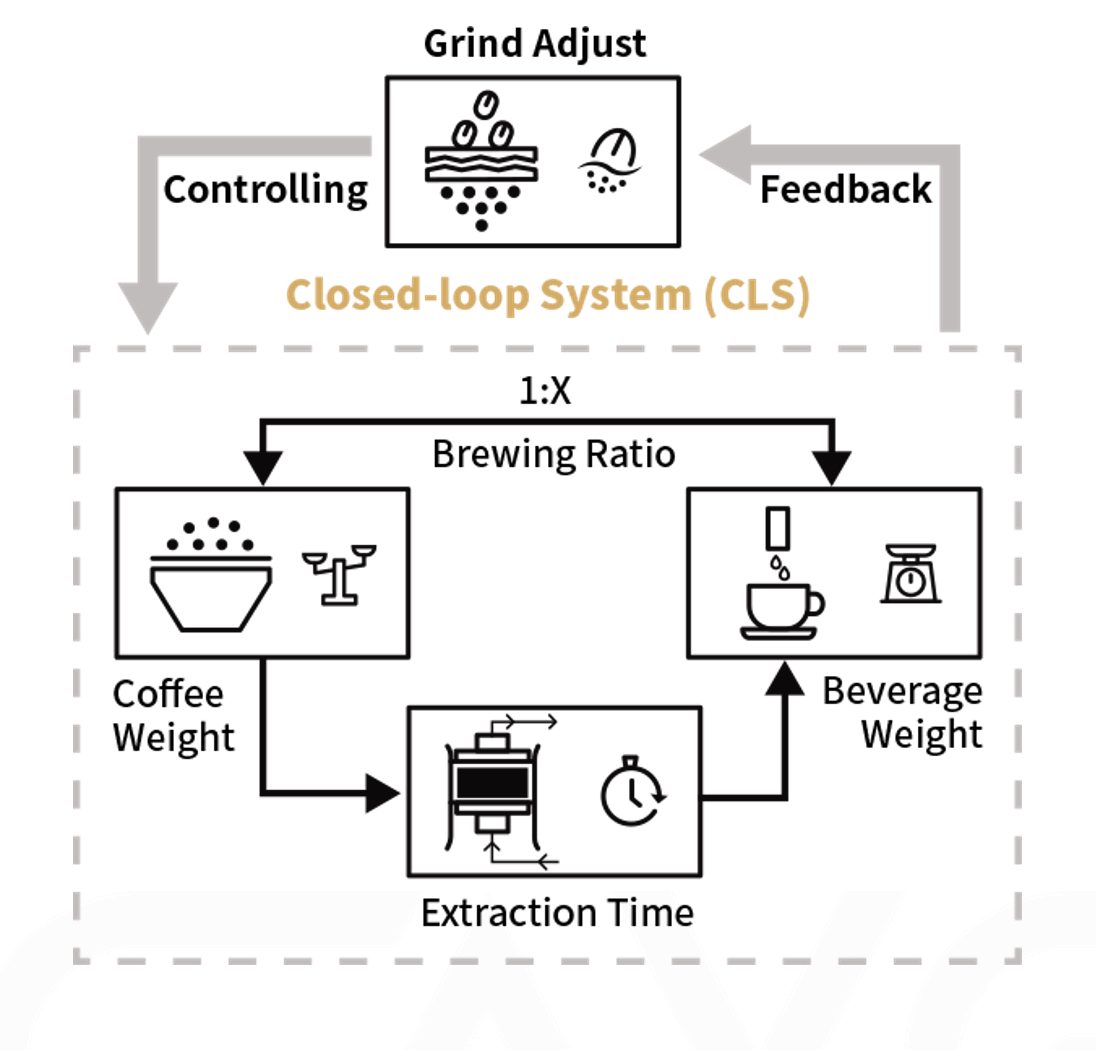

How the CLS Closed-Loop System Works

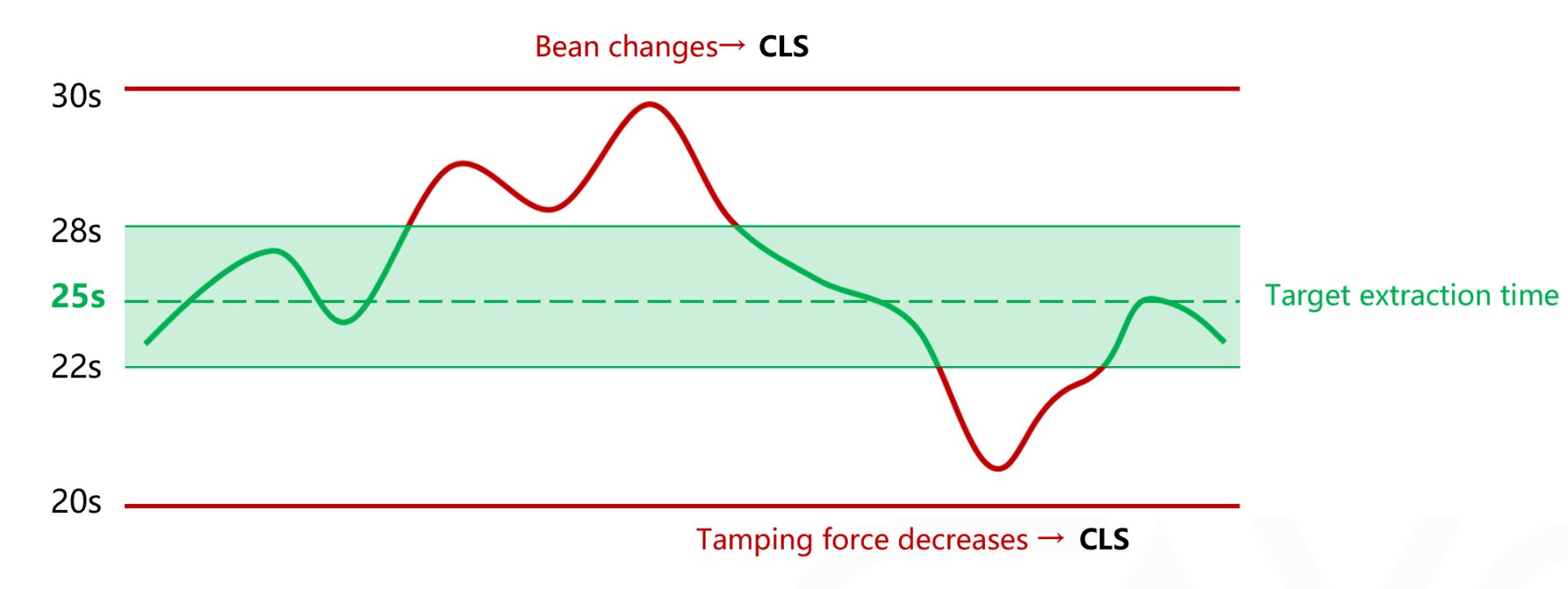

At the heart of the CLS system is the ability to automatically adjust the grind size based on precise measurements of coffee weight and extracted liquid weight, which is key for producing perfect espresso shots. It’s the perfect solution for businesses looking for professional coffee machines for business—whether in cafés, coffee chains, or restaurants. This advanced espresso technology takes the guesswork out of coffee making, delivering consistent coffee quality that rivals the craftsmanship of skilled baristas.
With the best coffee machines for cafes, the Smart X series integrates this innovative Closed-Loop extraction system that automates the calibration process. Unlike traditional machines, the CLS system measures coffee grounds weight before extraction, offering an immediate response when there is a deviation in extraction time. It’s the most reliable system for cafes and high-volume commercial locations.
Streamline Your Workflow with Automatic Calibration
The coffee machine with automatic calibration feature significantly improves workflow by ensuring all machines are calibrated to perfection, without requiring manual input from baristas. Not only does this save time, but it also reduces waste and operational costs, which are crucial for any coffee business.
Quick Calibration

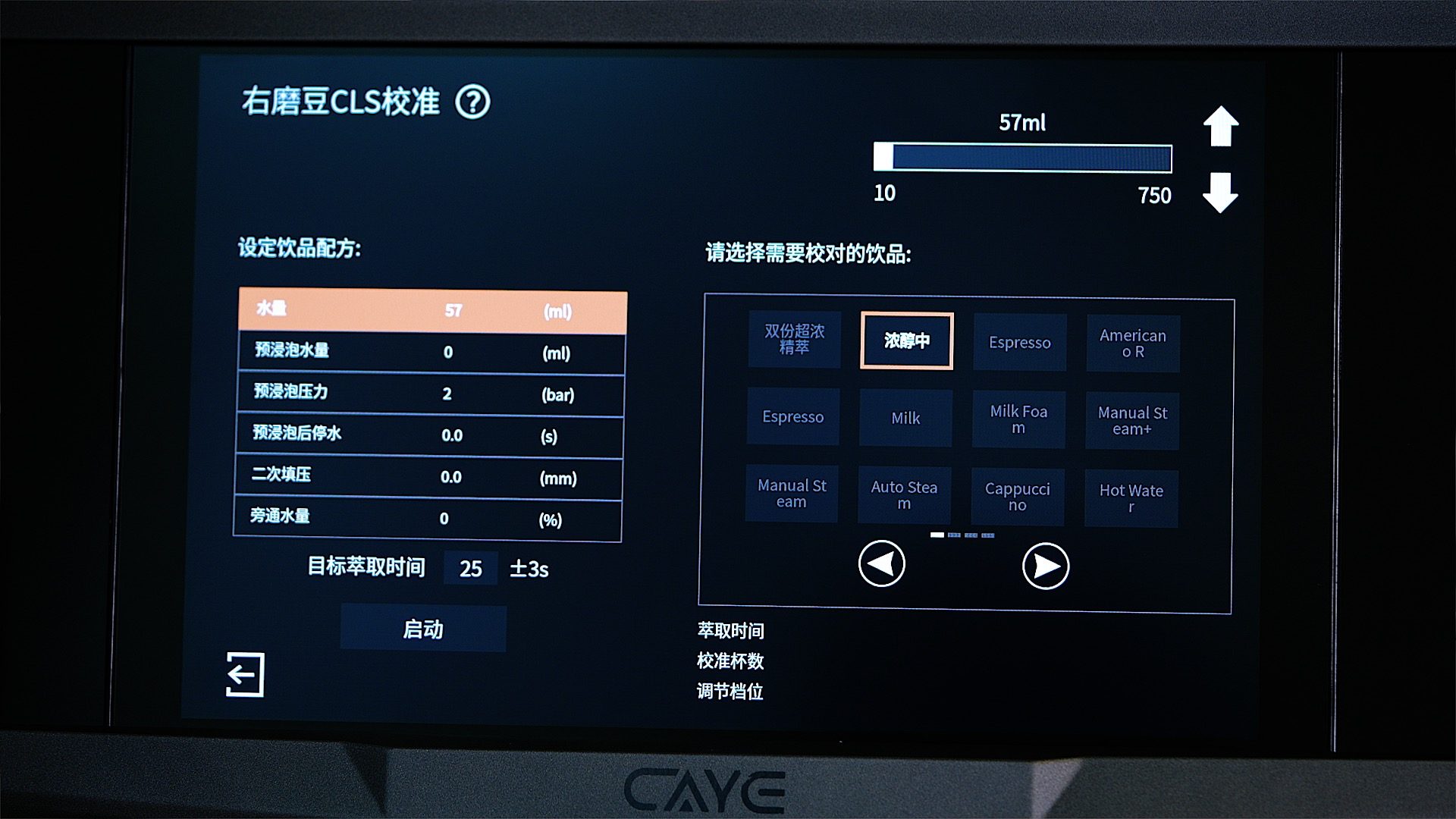

The CLS system simplifies the calibration process. After changing coffee beans or starting the day’s operations, simply input the desired parameters (such as coffee weight, water amount, and target extraction time) into the automatic calibration program. With just one press of a button, the system runs and adjusts the grind size in as few as three cups, ensuring fast and efficient calibration.
Real-Time Monitoring and Adjustments
CLS continuously monitors the extraction process and automatically adjusts the grind size if any discrepancies are detected. This real-time adjustment eliminates the need for manual intervention, reducing the reliance on barista experience and ensuring consistent results.
Data-Driven Control

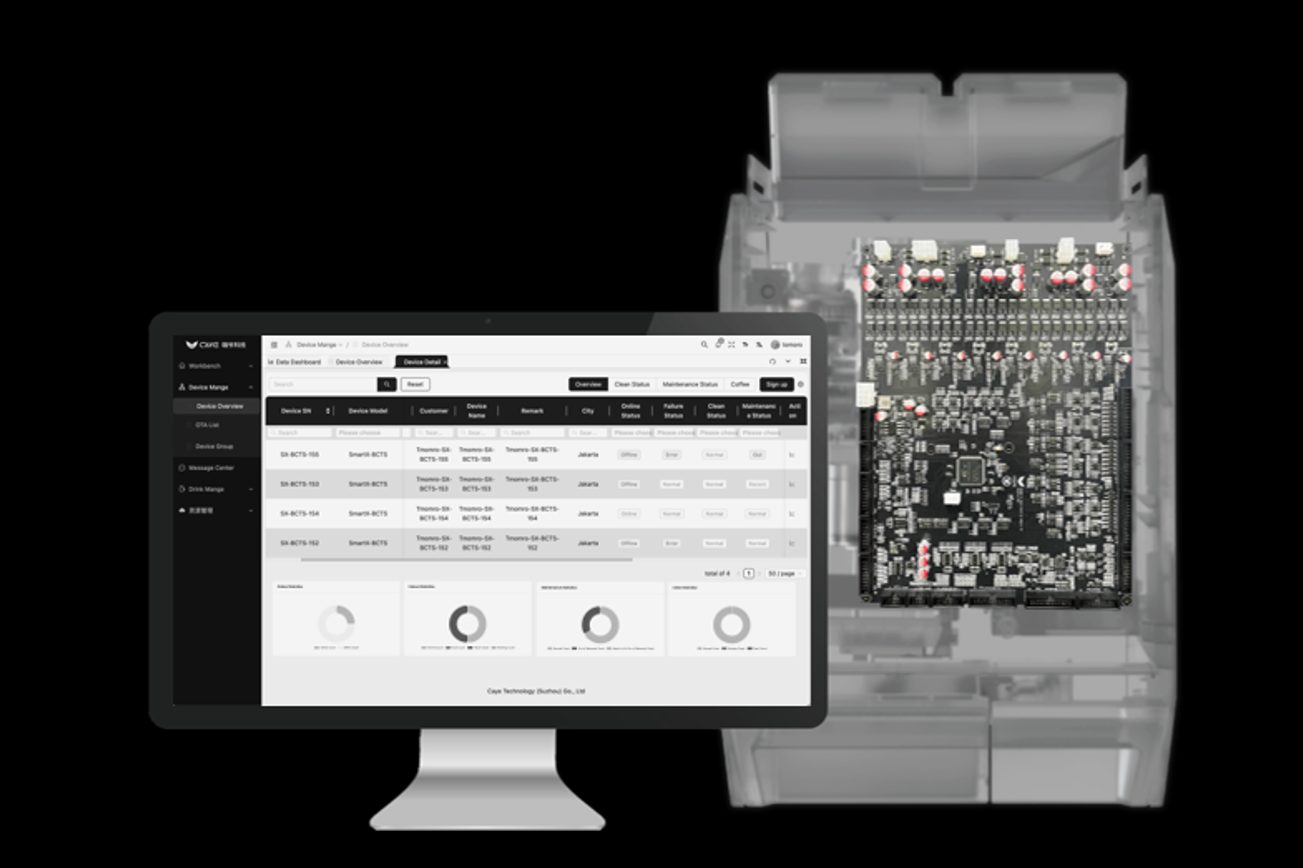

The CLS system stores calibration data in the drink history records and synchronizes it with the IoT cloud platform. This makes it easy to track the system's performance, analyze trends, and make data-driven decisions for operational optimization.
Ready to Upgrade Your Coffee Business?
The Smart X series comes standard with the CLS system, perfect for chain stores and commercial venues, offering efficient daily production. For more advanced needs, the CLS for Studio version adds an optional Espresso Scale Module for precise espresso measurement, making it ideal for specialty coffee shops, research labs, and brand headquarters to fine-tune recipes and optimize flavor.
Ready to elevate your coffee business with the best espresso machines? Look no further than the Smart X series, which brings consistent coffee quality and professional-level performance to every location.
Even distribution like a Pro barista

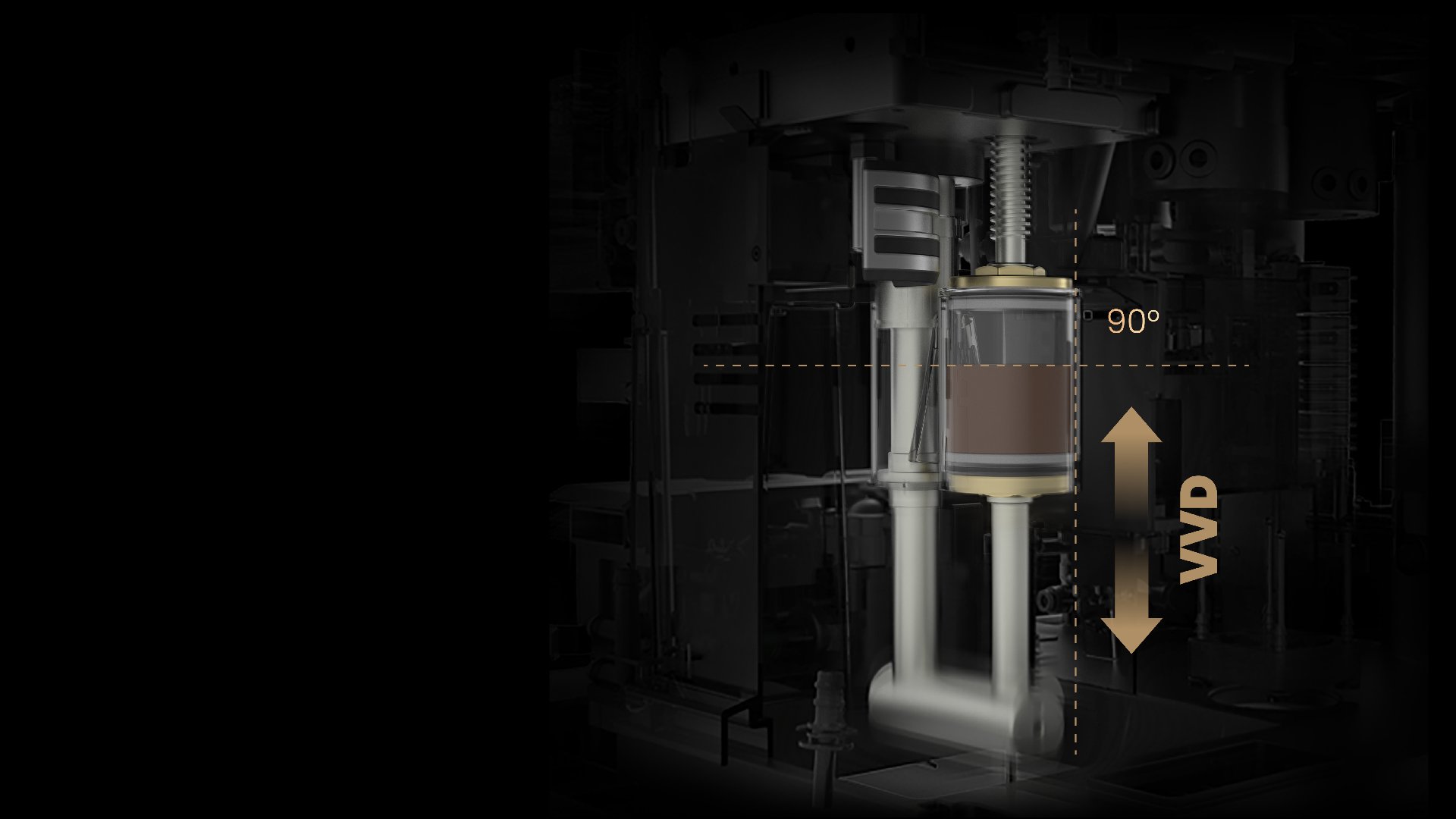

The exclusive VVD technology simulates the barista's tamping touch, using vertical vibrations to create a perfectly level coffee bed. This prevents channelling, ensuring water flows evenly through the grounds, which is key to a stable, rich extraction.
Unlike traditional commercial coffee machines, the Smart X series features a powder catcher cup that releases the coffee grounds in a single motion into the brewing chamber. This design prevents coffee grounds from piling up directly in the brewing chamber during grinding, avoiding the formation of a "high hill" shape on top.

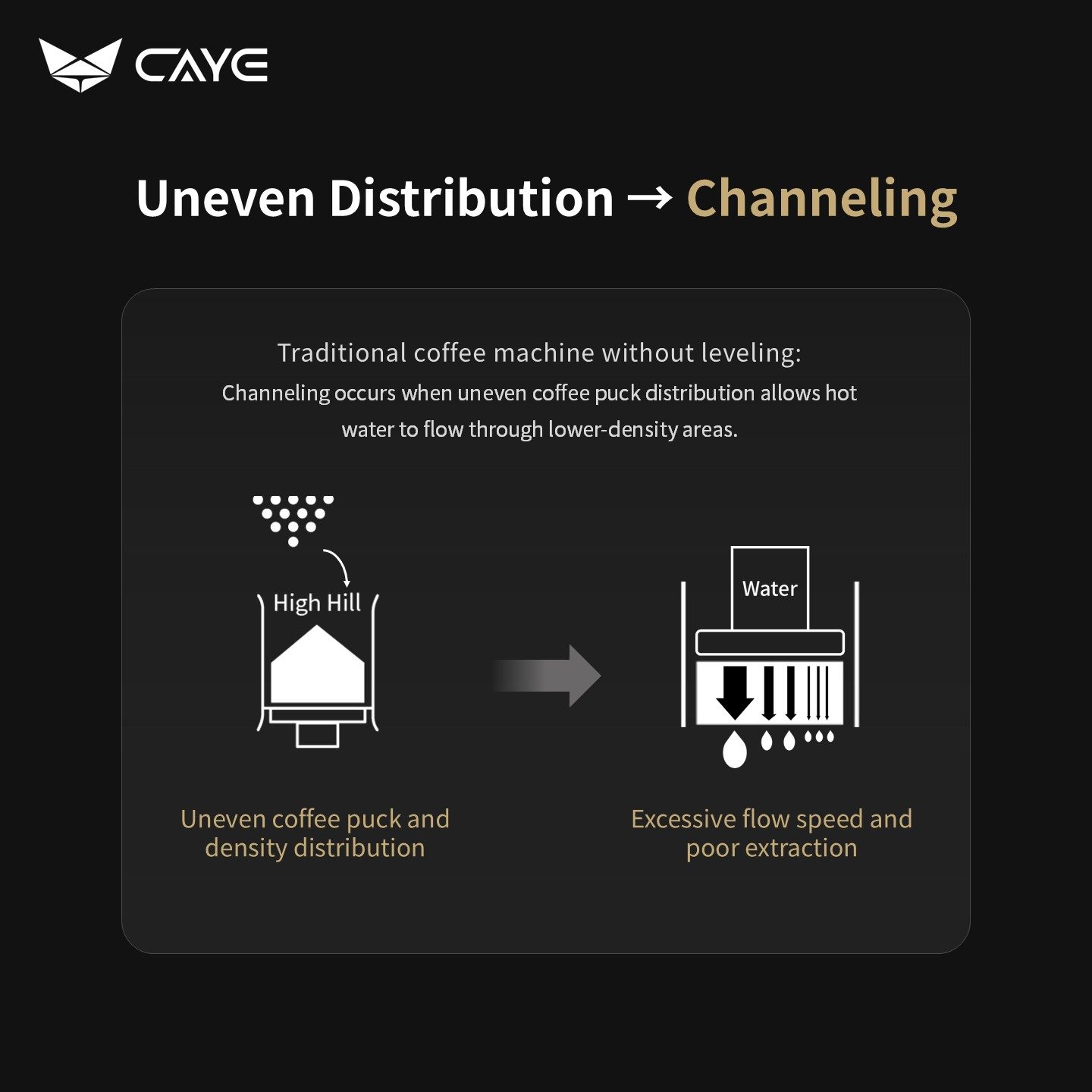

When coffee grounds are evenly and smoothly distributed in the brewing chamber, it creates an optimal foundation for tamping and extraction. Uneven distribution, on the other hand, can lead to the channelling effect.
Advanced Extraction
The tamping component in the Smart X series is equipped with a digitally controlled motorized upper piston, allowing precise adjustment of tamping pressure within a 20-60kg range. This ensures the coffee puck is compact and level, creating uniform density and resistance, which lays a solid foundation for a consistent extraction flow rate.

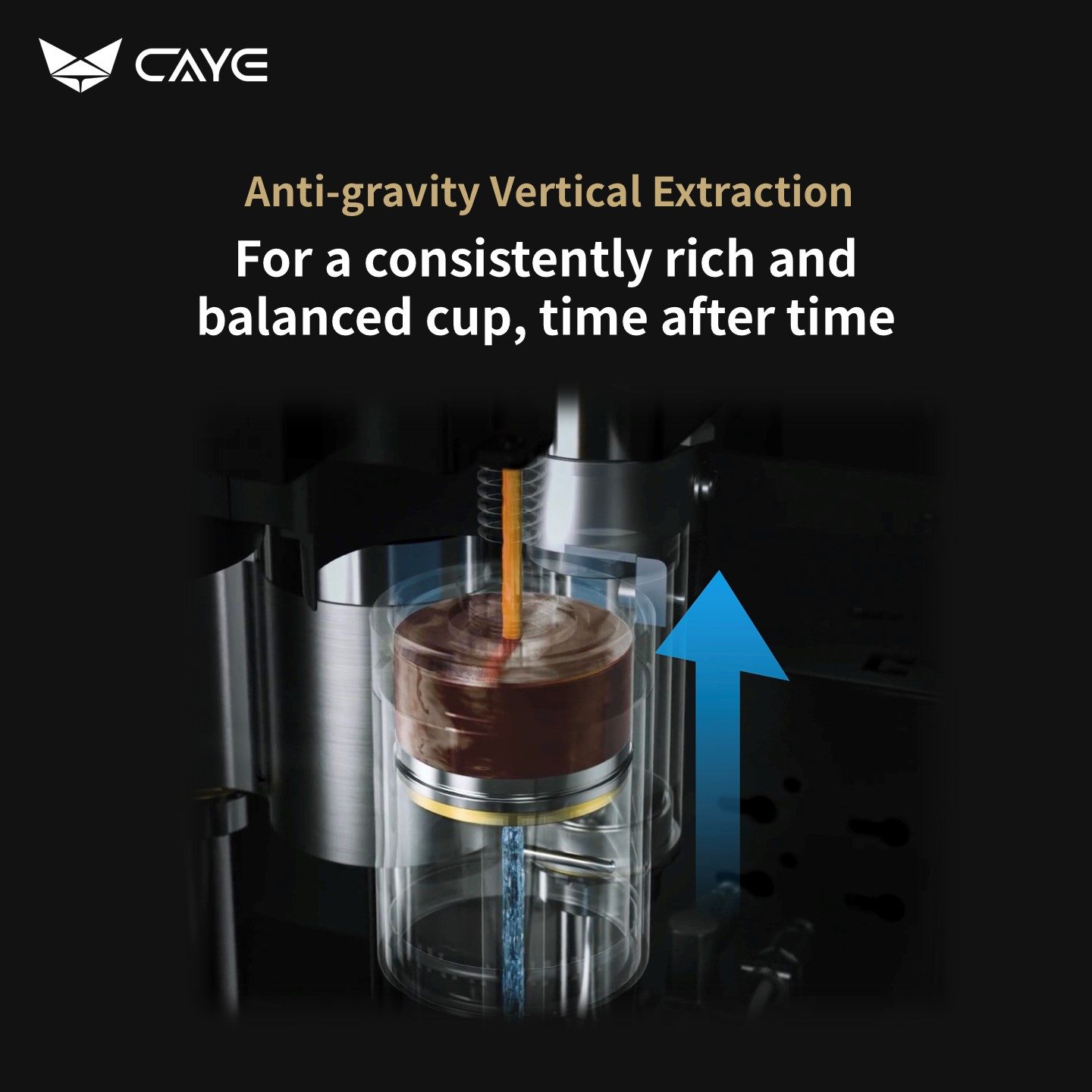

Our upward-flow extraction and adjustable pre-infusion settings further enhance flavour consistency. Every shot delivers a full-bodied, balanced taste, bringing out the best in every blend.
The Benefits
With extraction stability as a foundation, baristas can focus more on creativity – experimenting with unique bean combinations, flavours, and brewing methods to craft distinctive drinks that stand out.
From coffee shop startups to large-scale chains, Smart X BionicBarista is designed to make premium espresso effortless, helping baristas consistently deliver top-quality coffee with every pull. Enhance your coffee craft, delight your customers, and discover a smarter way to brew!
In the world of commercial fully automatic coffee machines, every step in the coffee-making process is crucial. Among these, grinding is the cornerstone of exceptional coffee quality, directly influencing both cup output efficiency and flavor excellence.
The Smart X Series stands as a testament to cutting-edge grinding technology, ensuring both precision and durability in high-volume commercial environments.

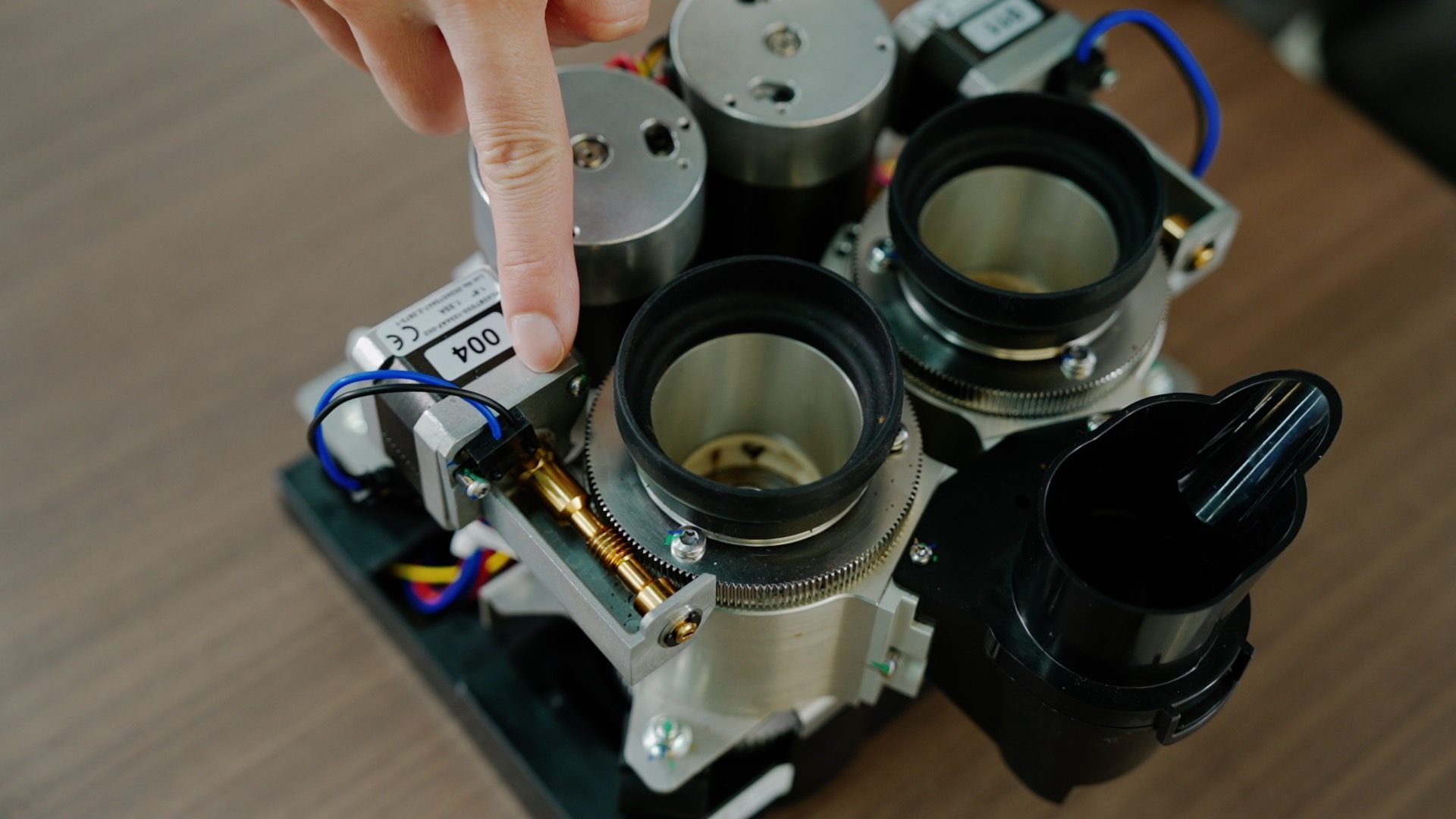

High-Performance Grinding Module
The Smart X Series integrates a high-performance grinder module driven by a powerful, high-torque digital brushless motor. This motor is engineered to handle even the hardest medium-light roasted beans with ease, maintaining consistent performance during prolonged grinding sessions.

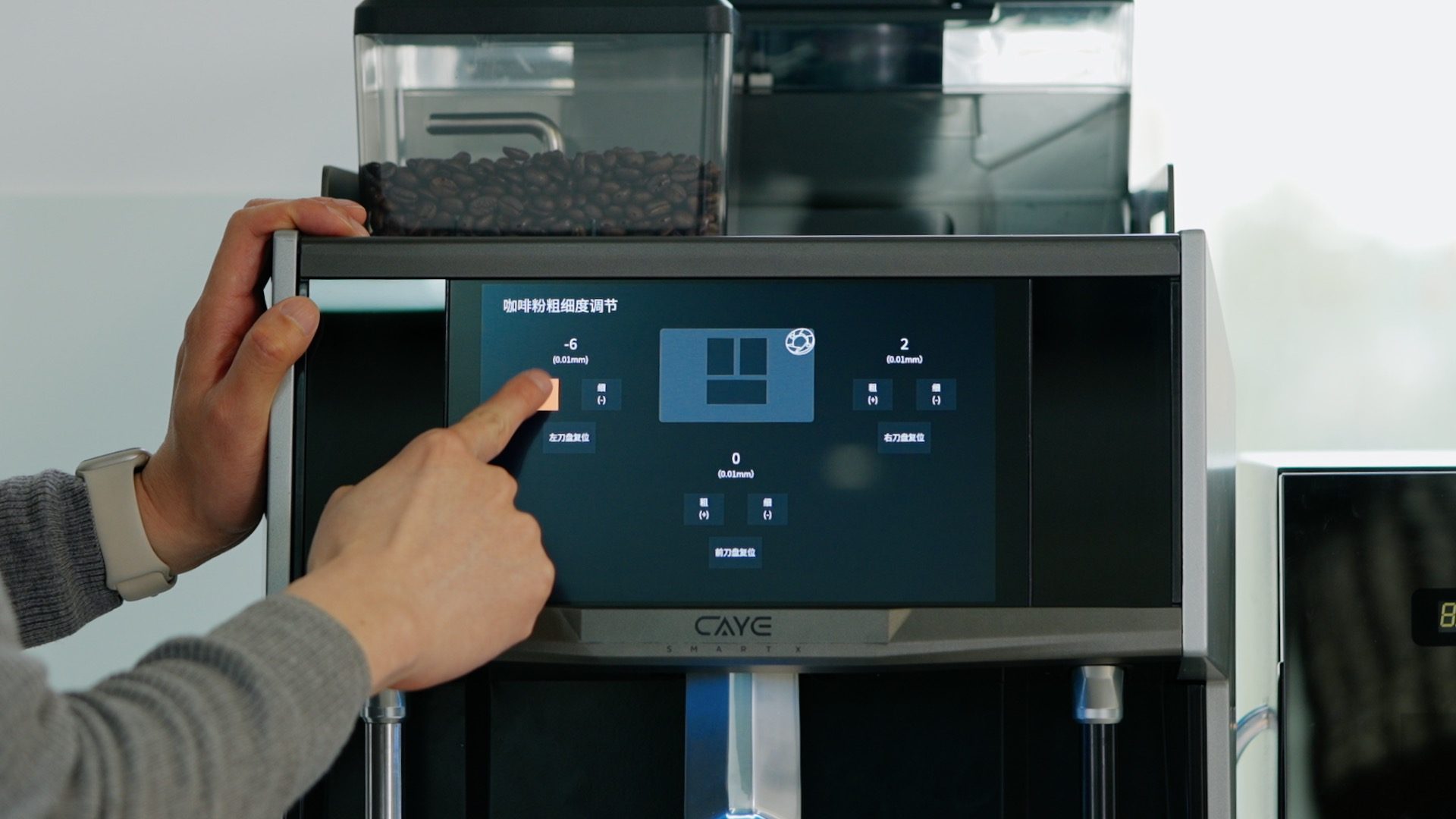

Electric Fine-Tuning: Users can adjust grind size with 0.01mm precision via an intuitive touchscreen interface, enabling optimal preparation for diverse coffee profiles.
Durable Stainless Steel Gears: High-precision CNC-machined gears enhance adjustment accuracy, ensuring a stable grind quality over extended use.
Up to 3 Grinders: The machine supports up to three separate bean hoppers, each paired with its own grinder and customizable grind settings.
This advanced grinding system provides the foundation for the CLS (Closed-Loop System) Extraction Control, ensuring unparalleled consistency in cup quality.

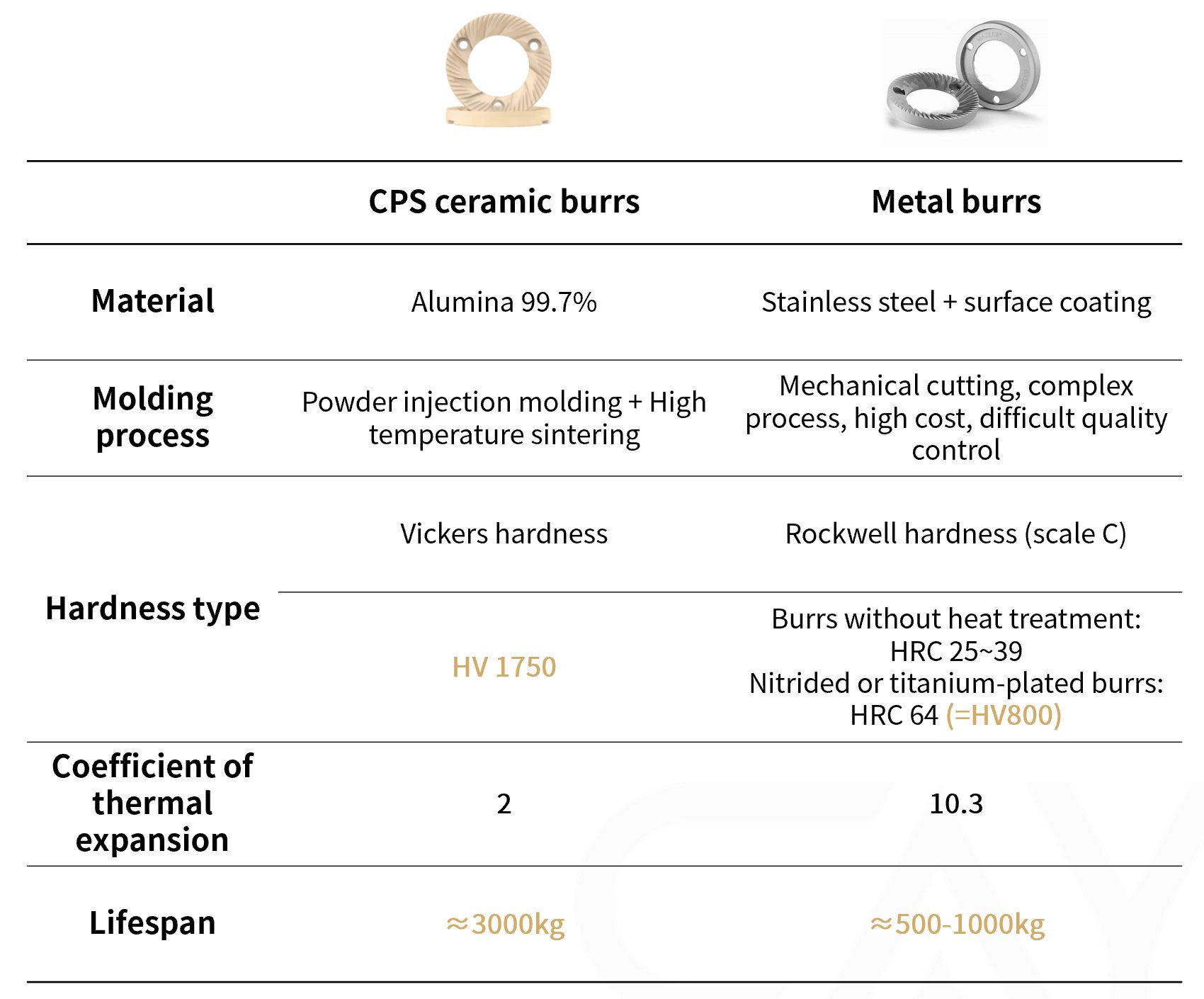

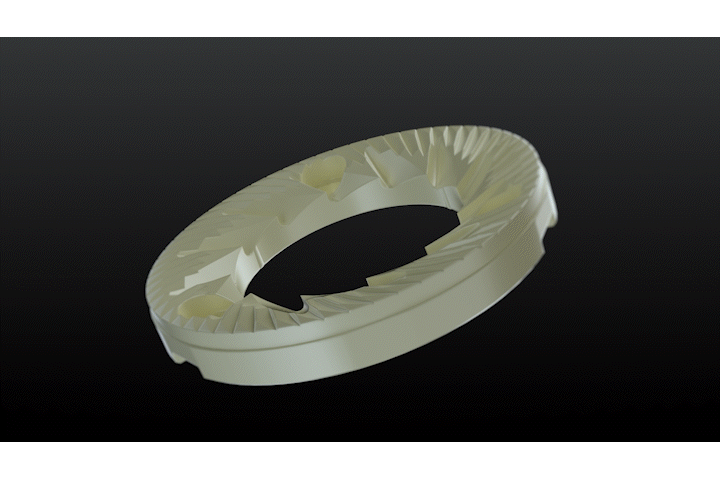

CPS (Constant Particle Size) Burrs

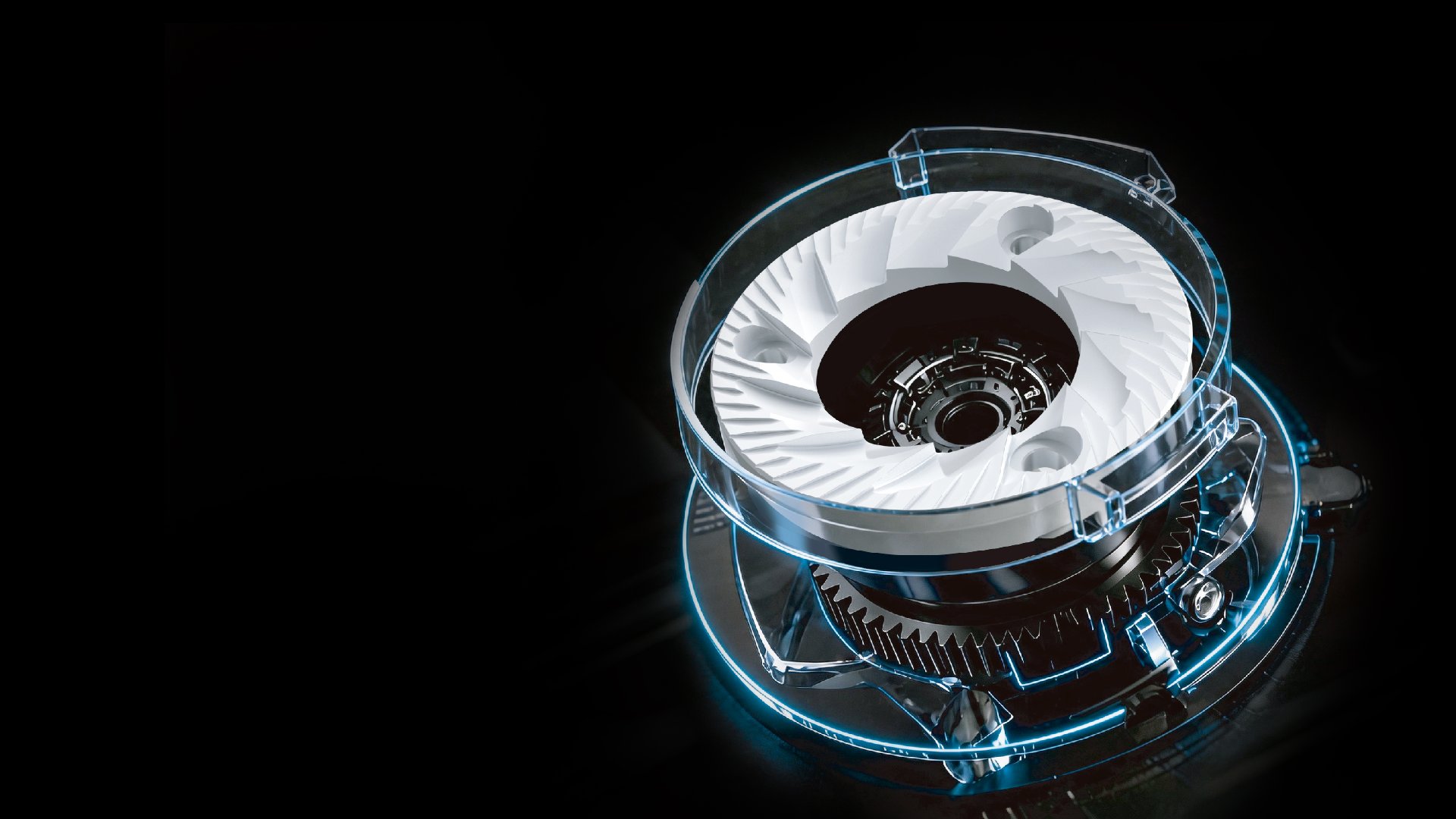

At the heart of the Smart X grinding system is the CPS ceramic burrs, optimized for commercial high-volume scenarios. These burrs maintain efficiency, stability, and temperature control throughout the day, directly supporting high-quality extraction.
Advanced Cutting Structure: Uniform pressure during grinding ensures even particle size distribution. Multi-layered cutting edges increase grinding efficiency and produce consistent particles.
Thermal Stability: Ceramic burrs generate significantly less heat compared to metal alternatives, preserving coffee flavor by minimizing thermal impacts.
Superior Durability: With a lifespan 2 to 4 times that of standard metal burrs—ceramic burrs reduce maintenance frequency and replacement costs.
The Benefits
Barista-Friendly Operations: Quick and efficient grinding, coupled with effortless fine-tuning via touchscreen, streamlines workflows and saves time.
Operational Efficiency: The system performs reliably during peak hours, maintaining both speed and quality under high demand.
Cost-Effectiveness: Long-lasting ceramic burrs and low maintenance needs reduce operational costs, making it an ideal choice for high-output venues.
With the introduction of the SuperMix Milk Frothing Technology, CAYE Smart X series truly transforms the way milk-based beverages are crafted. From silky cold foam for iced lattes to velvety hot foam for cappuccinos, this technology empowers coffee shops to deliver barista-level quality with unparalleled consistency and cost efficiency.
Automatic Milk Frothing
SuperMix redefines convenience and ease in milk frothing, delivering both hot and cold milk foam automatically within the system. It enables seamless coffee preparation with two versatile modes:

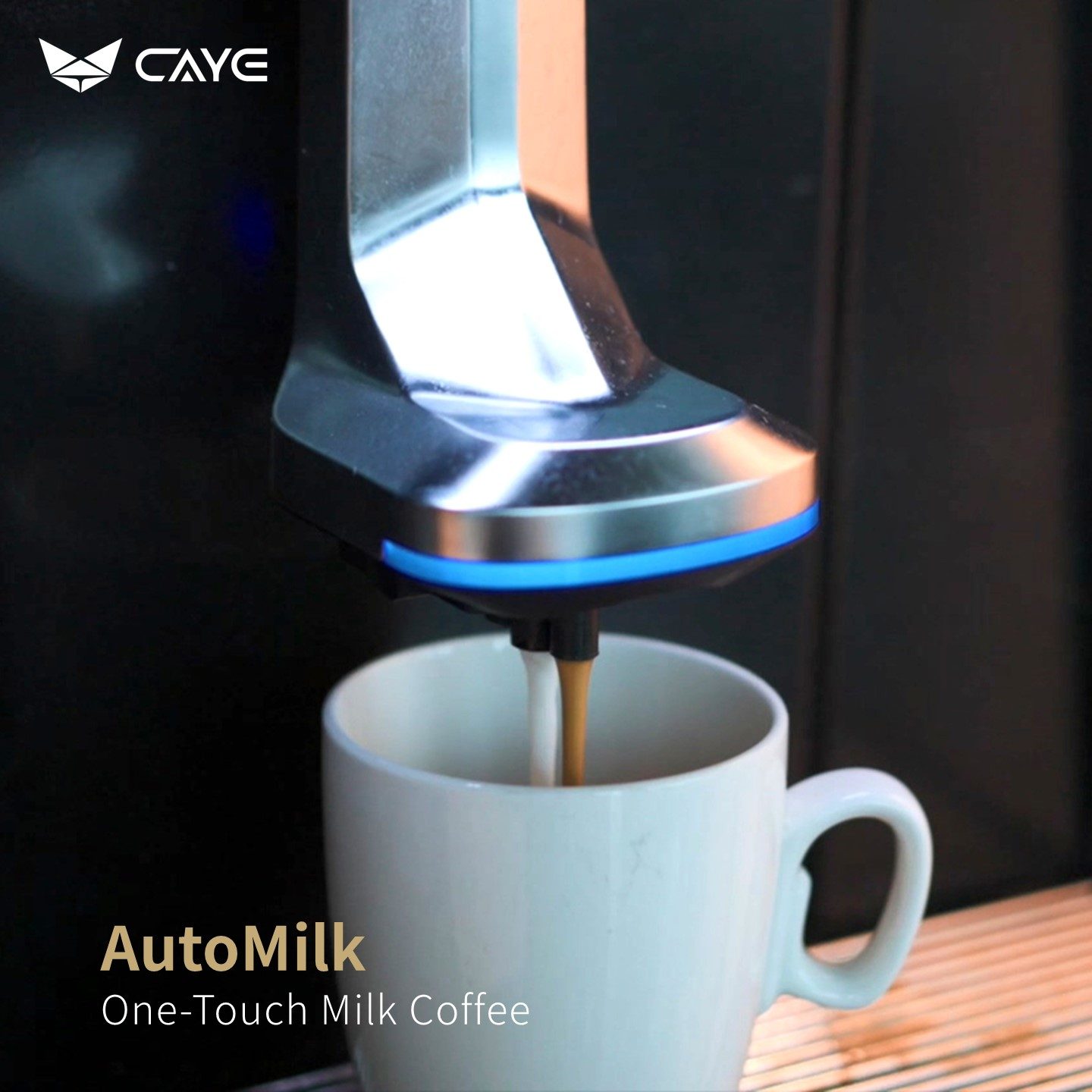

AutoMilk: One-Touch Milk Coffee
With a single touch, SuperMix perfectly blends milk foam with espresso directly in the cup, creating a high-quality milk coffee beverage, whether hot or cold. Ideal for high-demand environments such as coffee chains, convenience stores, and tea shops, this feature ensures precise portioning, consistent quality, and rapid service efficiency.

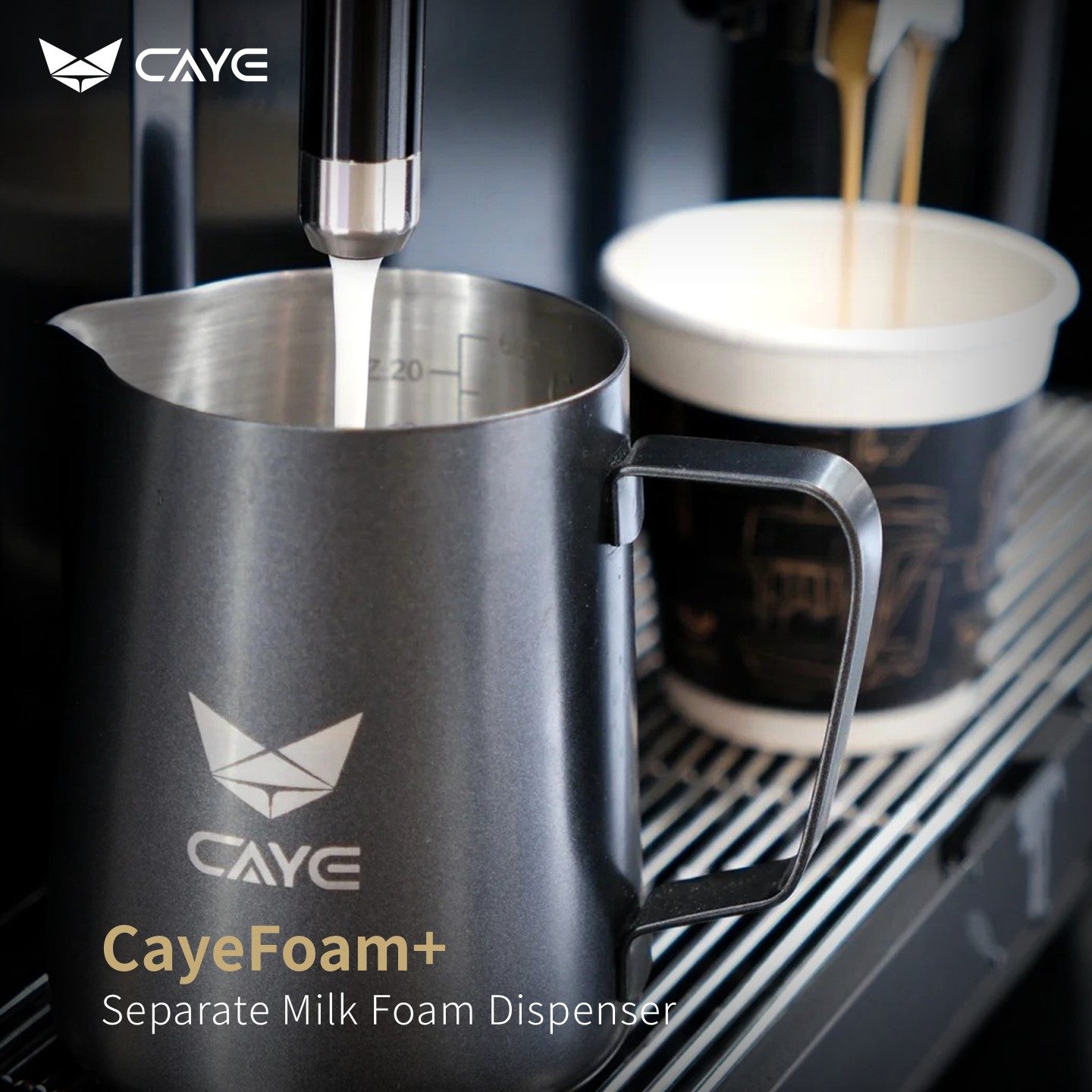

CayeFoam+: Separate Milk Foam Dispenser
The foam is dispensed through an independent outlet, functioning like a dedicated milk frother. SuperMix produces premium milk foam—hot or cold—while espresso extraction happens simultaneously. This allows baristas to effortlessly create latte art and significantly boosts workflow efficiency.

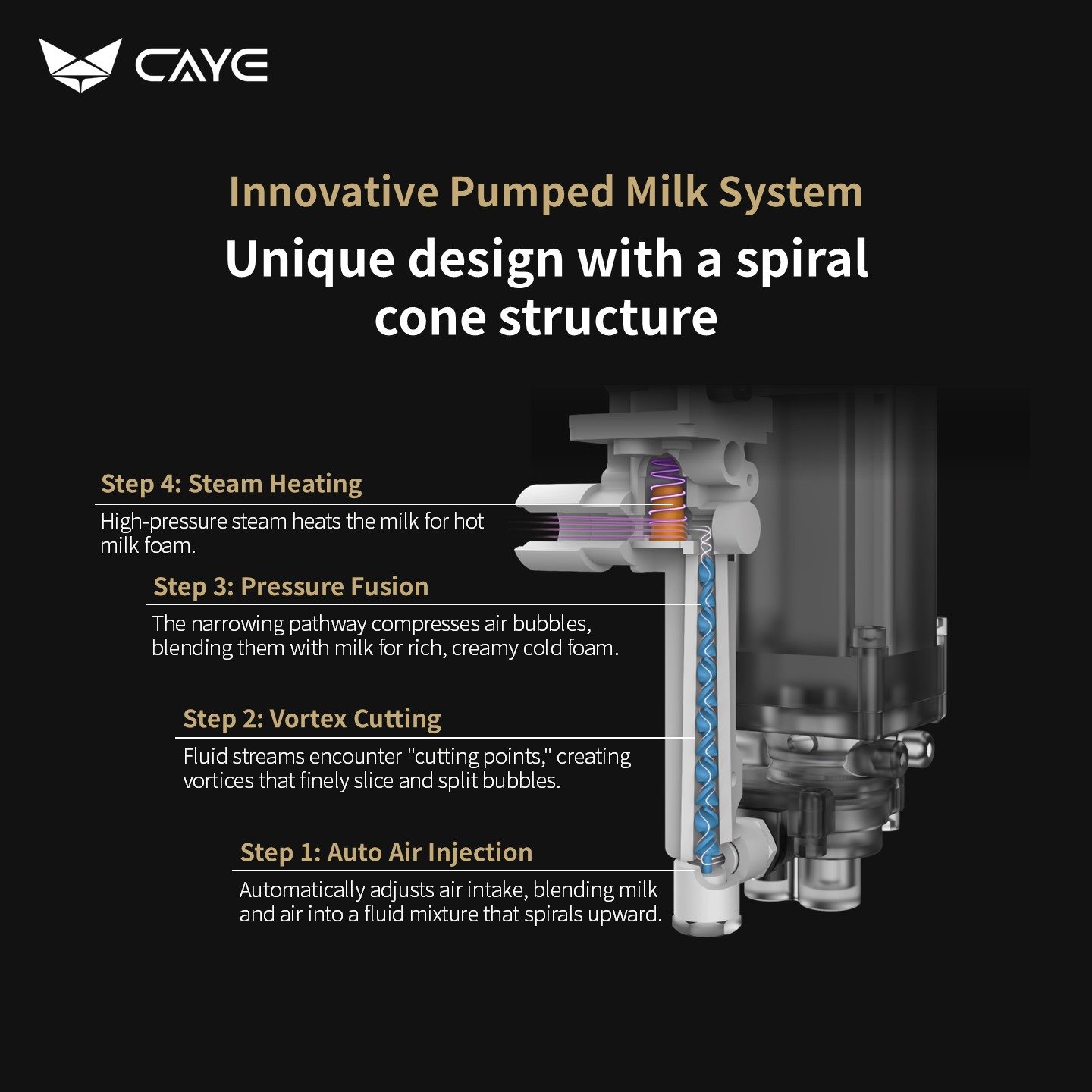

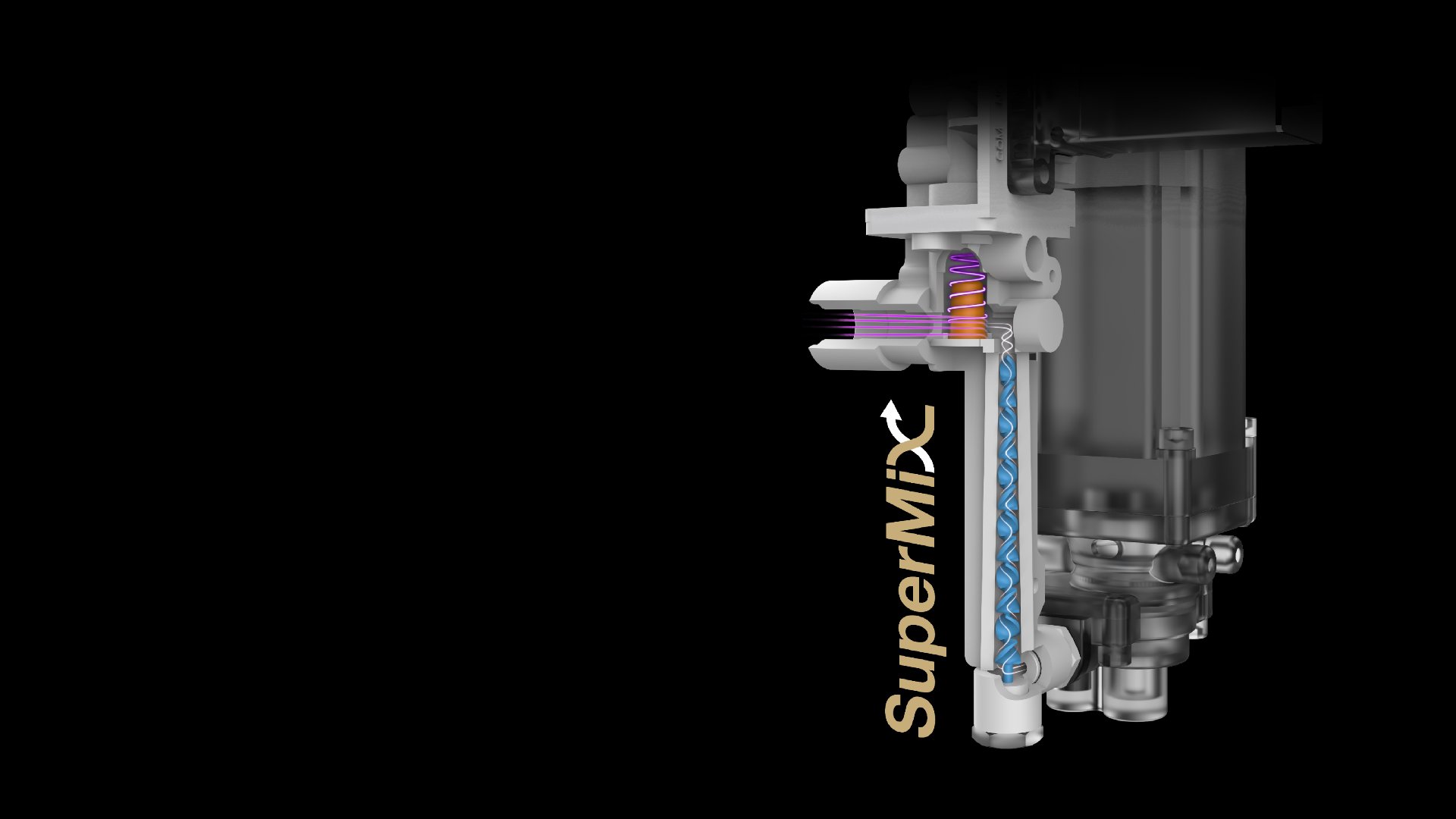

The Science Behind SuperMix
Unlike traditional automatic coffee machines that use the Venturi principle—prone to uneven frothing and inconsistent flow—Smart X employs a milk pump for precise milk dosing.
Milk is aerated and channeled into a specially designed spiral pathway. Within this vortex tube, the milk and air undergo thorough integration as the bubbles are cut, compressed, and fused repeatedly, producing velvety, dense milk foam.
l Cold Foam: Achieves a creamy gloss and dense texture, perfect for iced lattes or specialty drinks like coffee topped with cold foam.
l Hot Foam: Combines high-pressure steam with froth for heating. The system delivers hot milk foam at preset temperatures, ideal for cappuccinos and lattes.
The Benefits
1. Barista-Level Every Cup
The system ensures consistently smooth, silky foam that meets the Specialty Coffee Association's highest milk foam rating, Level 1 Excellent: a flawless texture with a glossy, moist appearance and no visible bubbles.
2. Creative Flexibility for Recipe
Baristas and beverage developers can unleash their creativity by crafting unique cold and hot milk-based specialty drinks to cater to diverse taste preferences.
3. Save Up to 25% on Milk Costs
With just a tap on the touchscreen, SuperMix allows precise adjustments to aeration levels, milk volume, and temperature via smart controls. The milk pump extracts exact quantities, minimizing waste.
4. Lower Training Costs
Even with staff turnover or new hires during store expansion, minimal time and cost are needed to master the system. Employees can easily produce high-quality milk foam, ensuring swift preparation of milk-based beverages or latte art during peak hours.
In high-traffic coffee environments such as coffee chains and convenience stores, rapid and consistent output is critical. A standard espresso brewing process typically involves the following steps:
1. Grinding
2. Dosing & Tamping
3. Extraction
4. Grounds Disposal

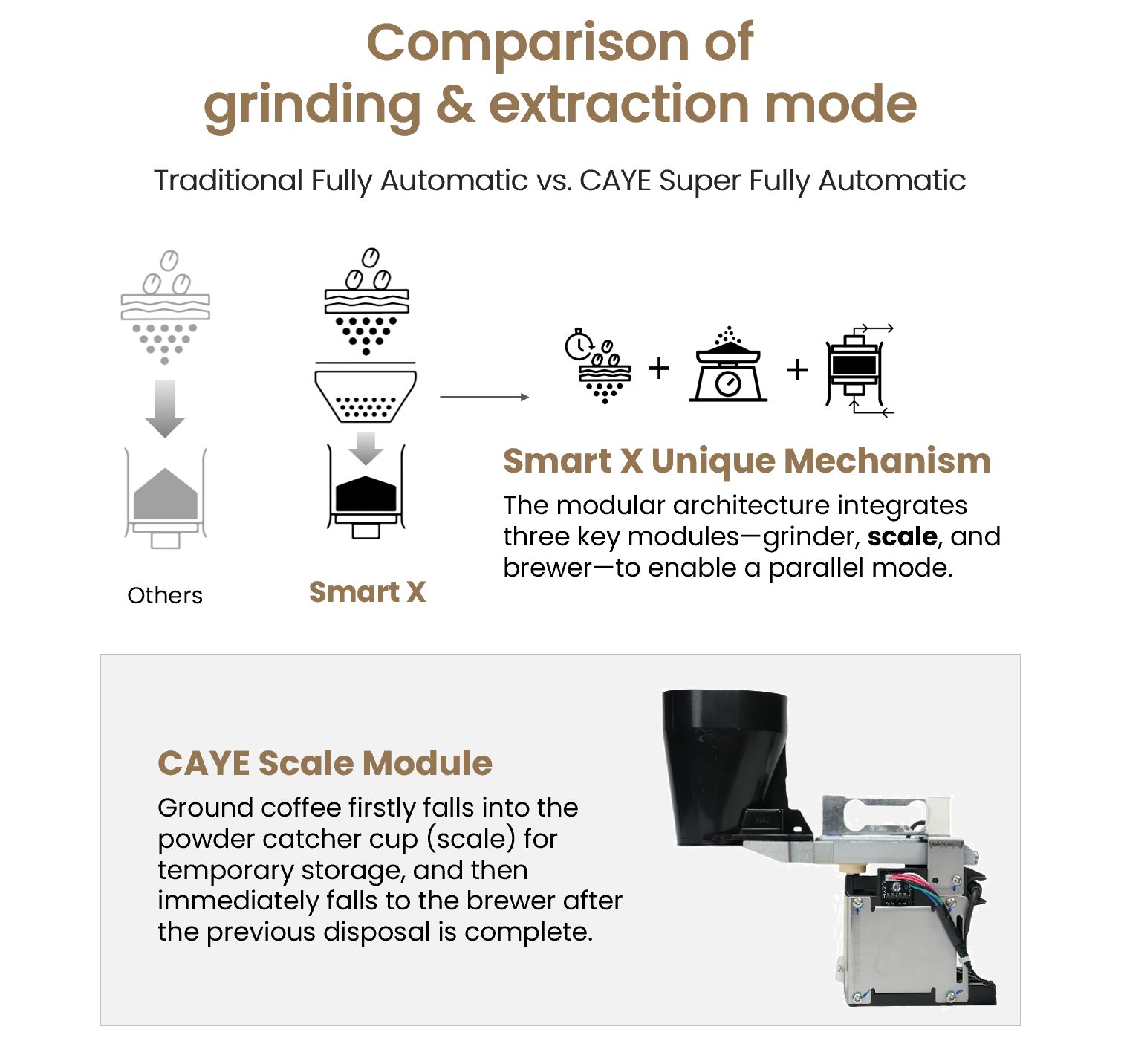

Most fully automatic coffee machines on the market operate in a serial mode, meaning these steps are executed sequentially—one after another. While this ensures a standardized process, it also represents a significant bottleneck in improving coffee production efficiency.

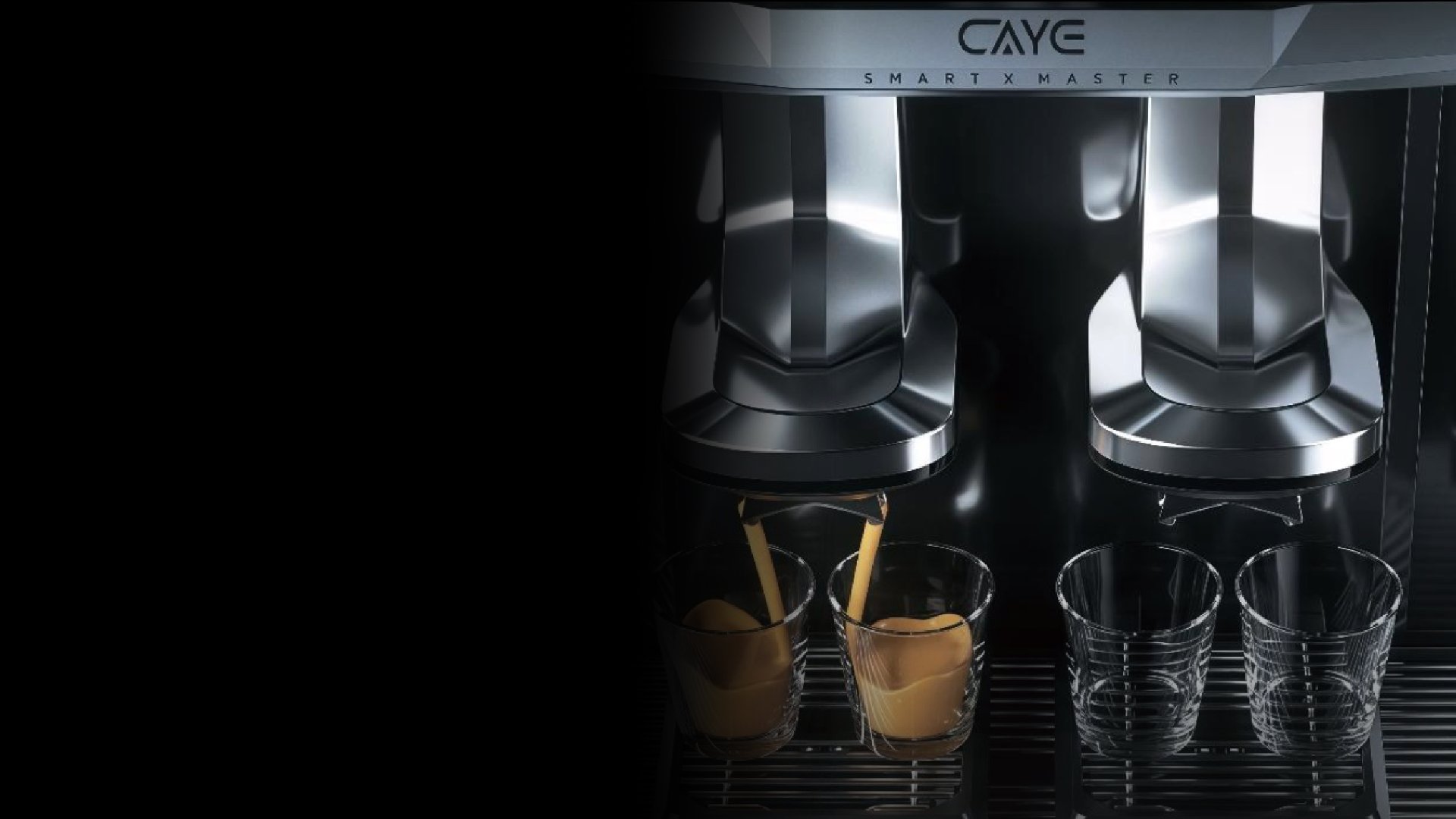

The Smart X Breakthrough: Parallel Mode
Unlike conventional machines, the Smart X series adopts an innovative modular architecture, integrating three key modules—grinding, weighing, and brewing—to enable a parallel processing mode. This means that while one cup is being brewed, the next batch of coffee grounds is already being prepared, significantly reducing waiting time.
How It Works:
Integrated Precision Scale Module – Unique to CAYE Smart X, this module serves a dual function: precise powder weight control and acting as a coffee dosing cup.
Predictive Brewing Logic – Unlike traditional machines that strictly follow the linear sequence (grinding → dosing → tamping → extraction → disposal), Smart X intelligently predicts the next cup’s brewing time and prepares coffee grounds in advance.
Seamless Transition – Once the current extraction is complete, pre-ground coffee is instantly released into the brewing chamber, ensuring an uninterrupted workflow.
Proven Performance: 15% Faster Espresso Output
By adopting parallel mode, Smart X dramatically enhances output efficiency. In a test brewing four consecutive espressos, Smart X outperformed traditional serial-mode machines by increasing espresso output speed by approximately 15%.
ü Higher Efficiency: During peak hours, Smart X drastically reduces customer wait time, leading to higher customer satisfaction. Its compact design makes it ideal for space-constrained locations, optimizing investment returns.
ü Profit Protection: Speed equals revenue, and efficiency drives reputation. By enabling staff to maintain high-speed coffee output even during rush hours, Smart X helps businesses prevent customer loss and maximize sales potential.

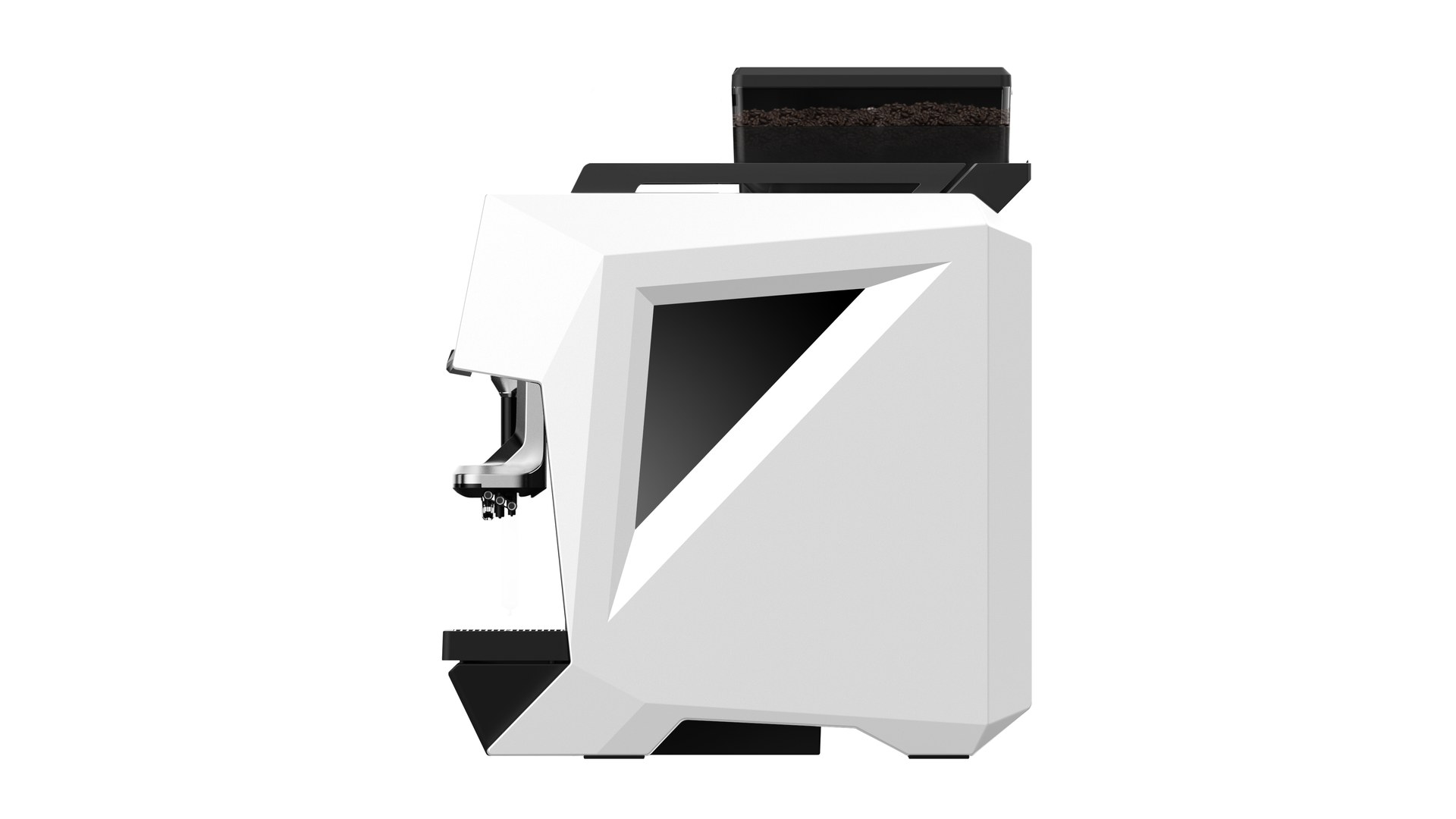

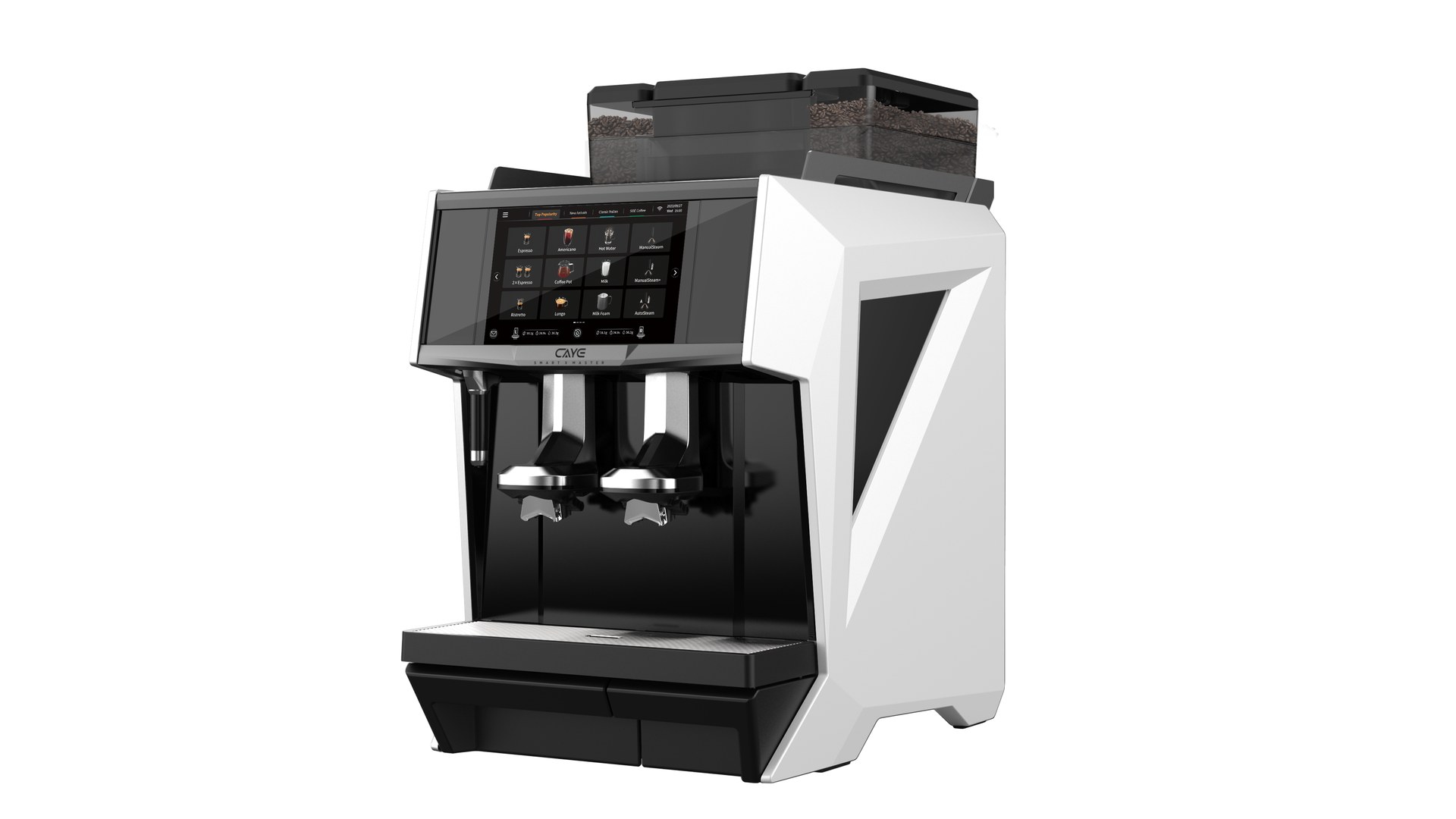

Choose the model, features, and finishes that fit your business needs and brand identity.

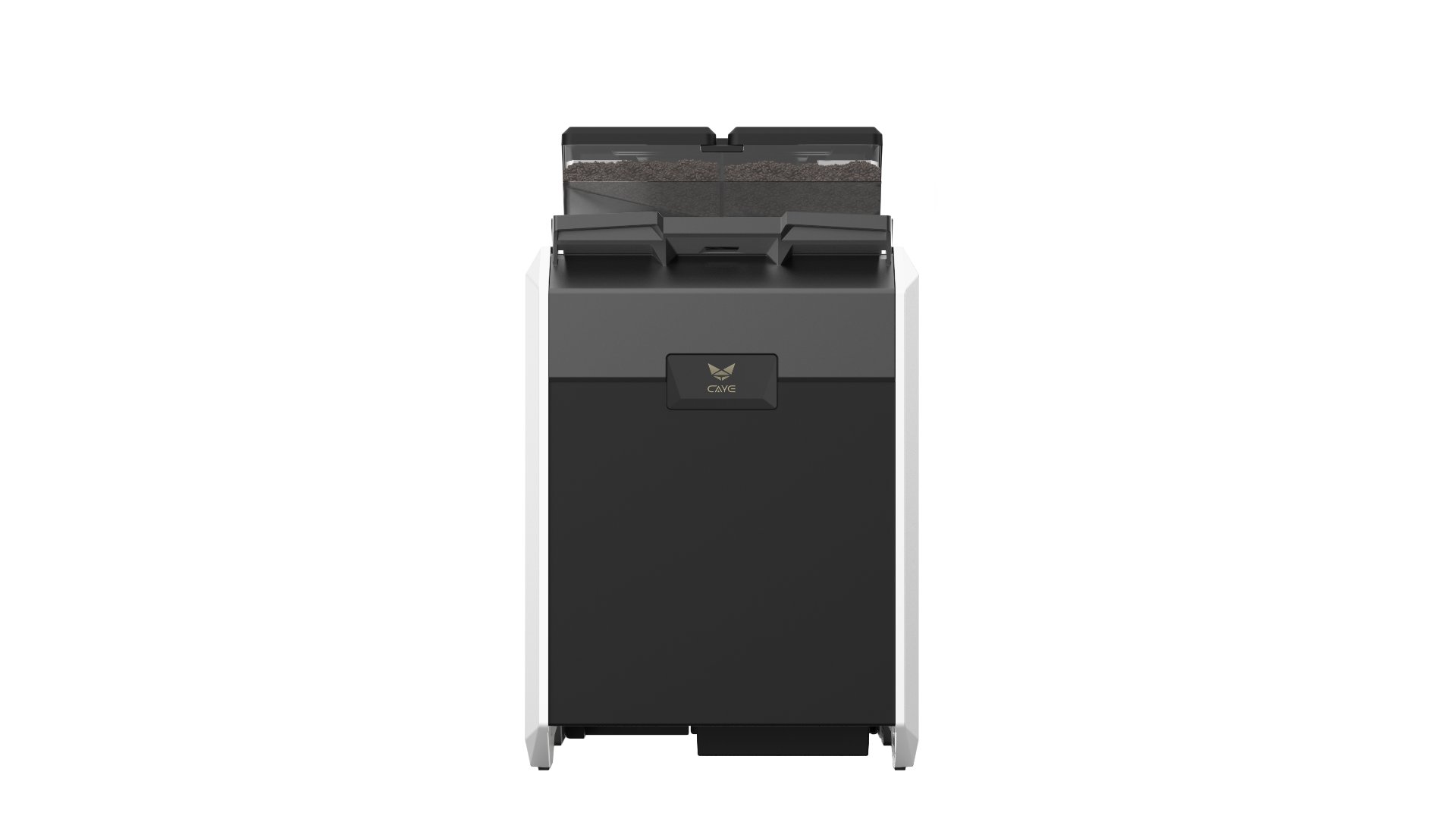

The LOGO on the back of the machine can be flexibly customized as needed.
